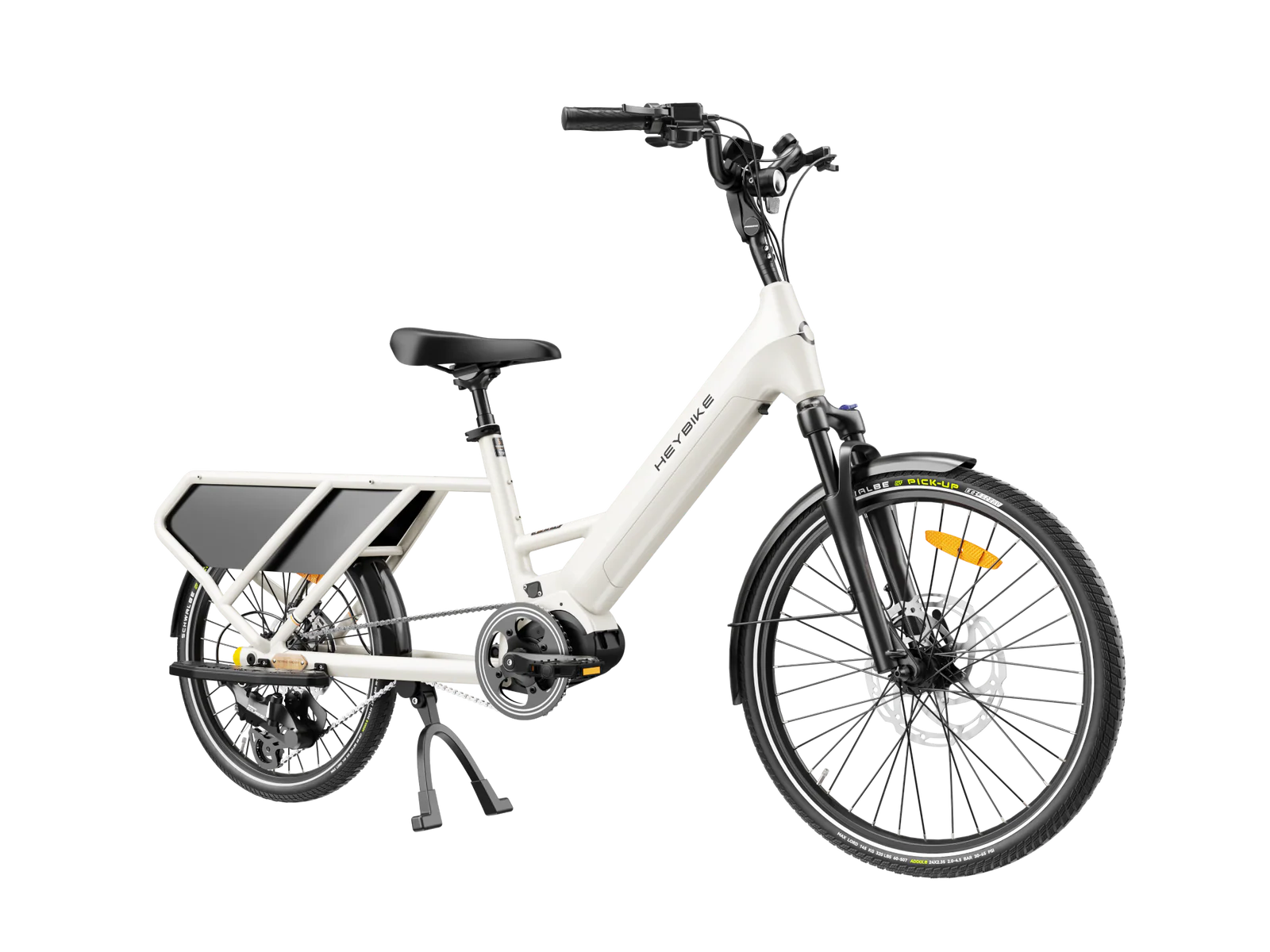

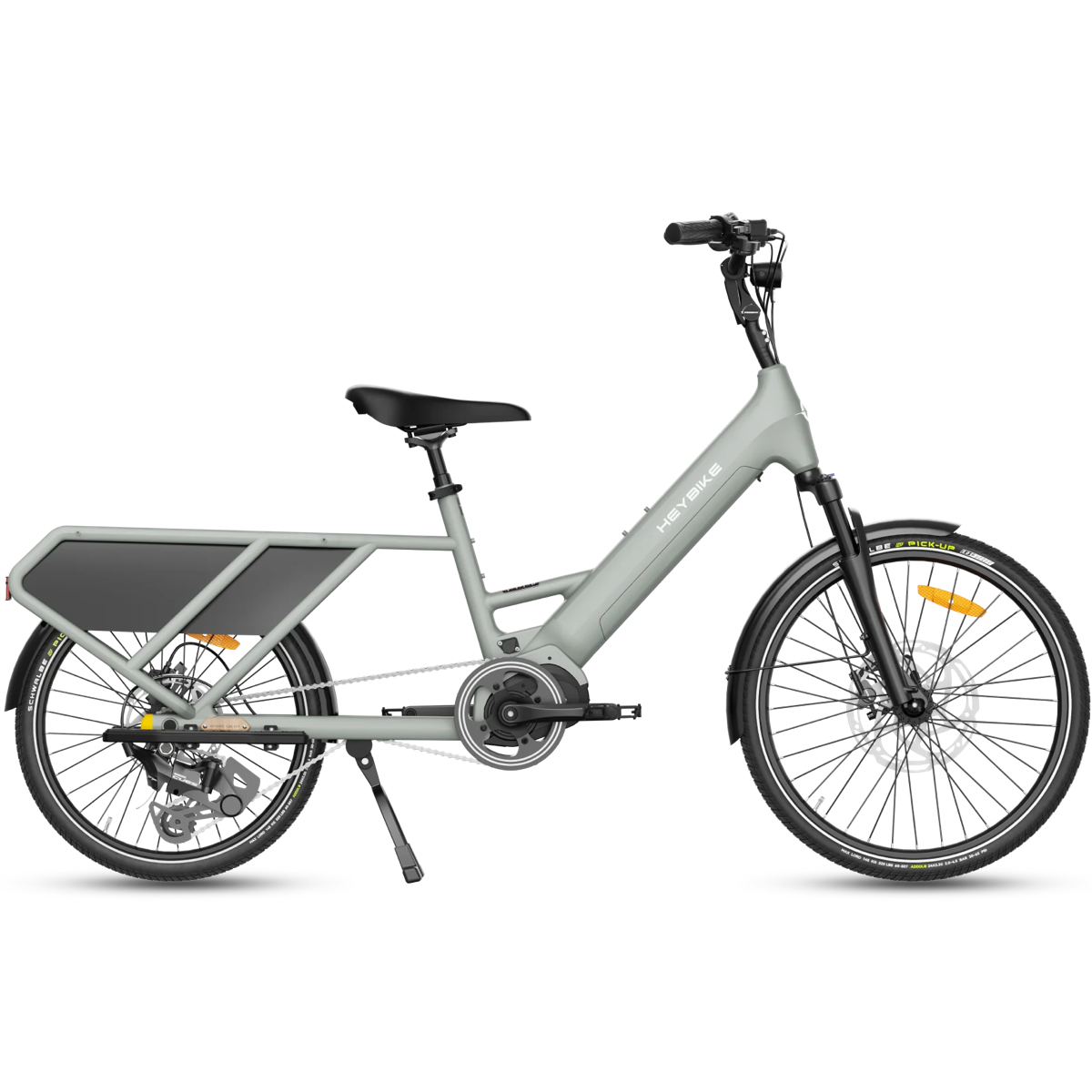

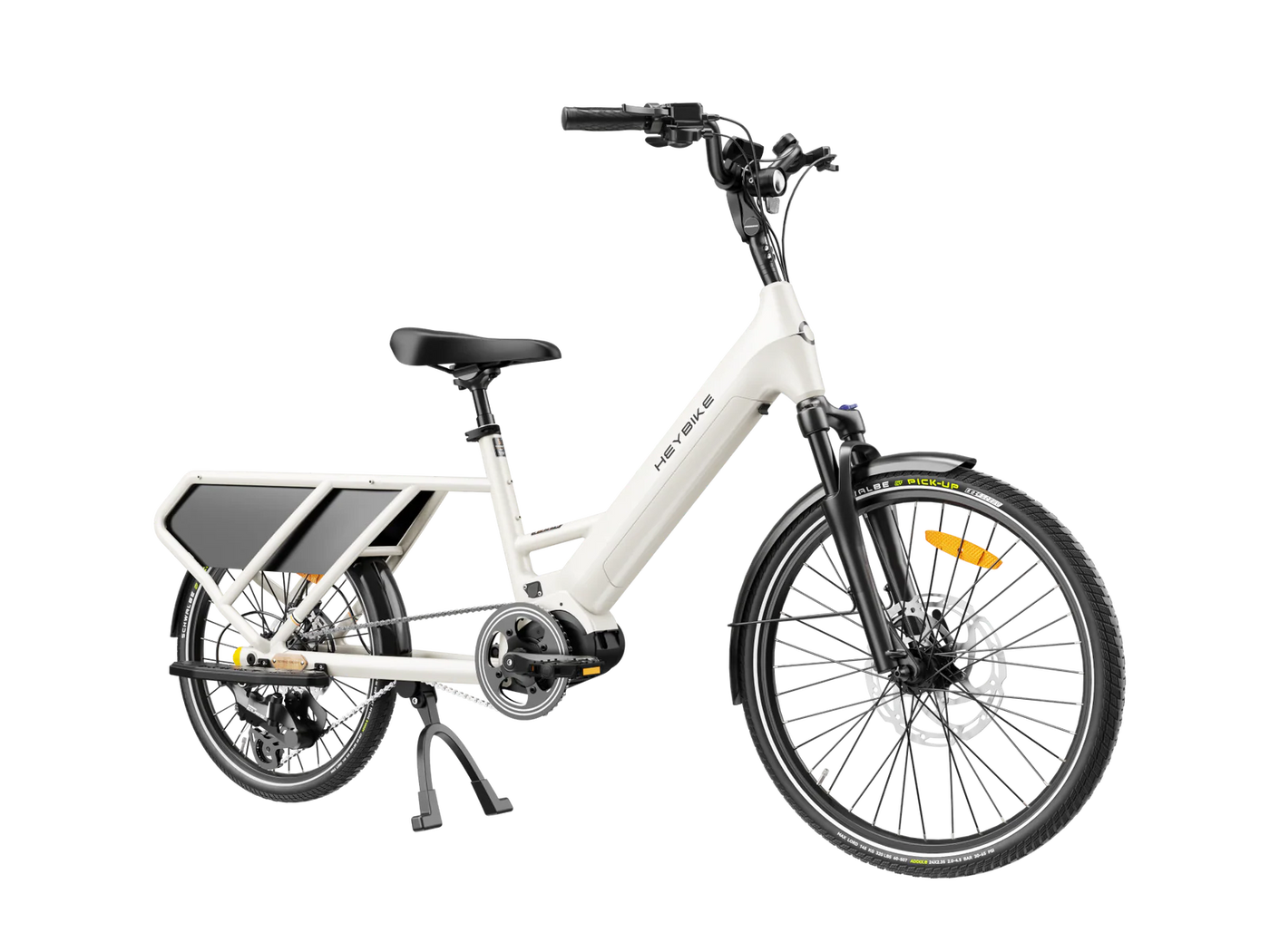

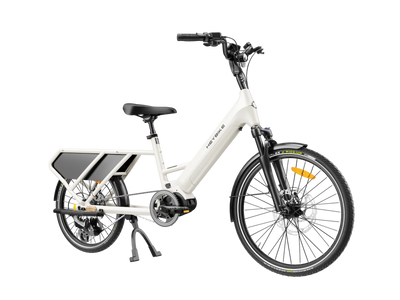

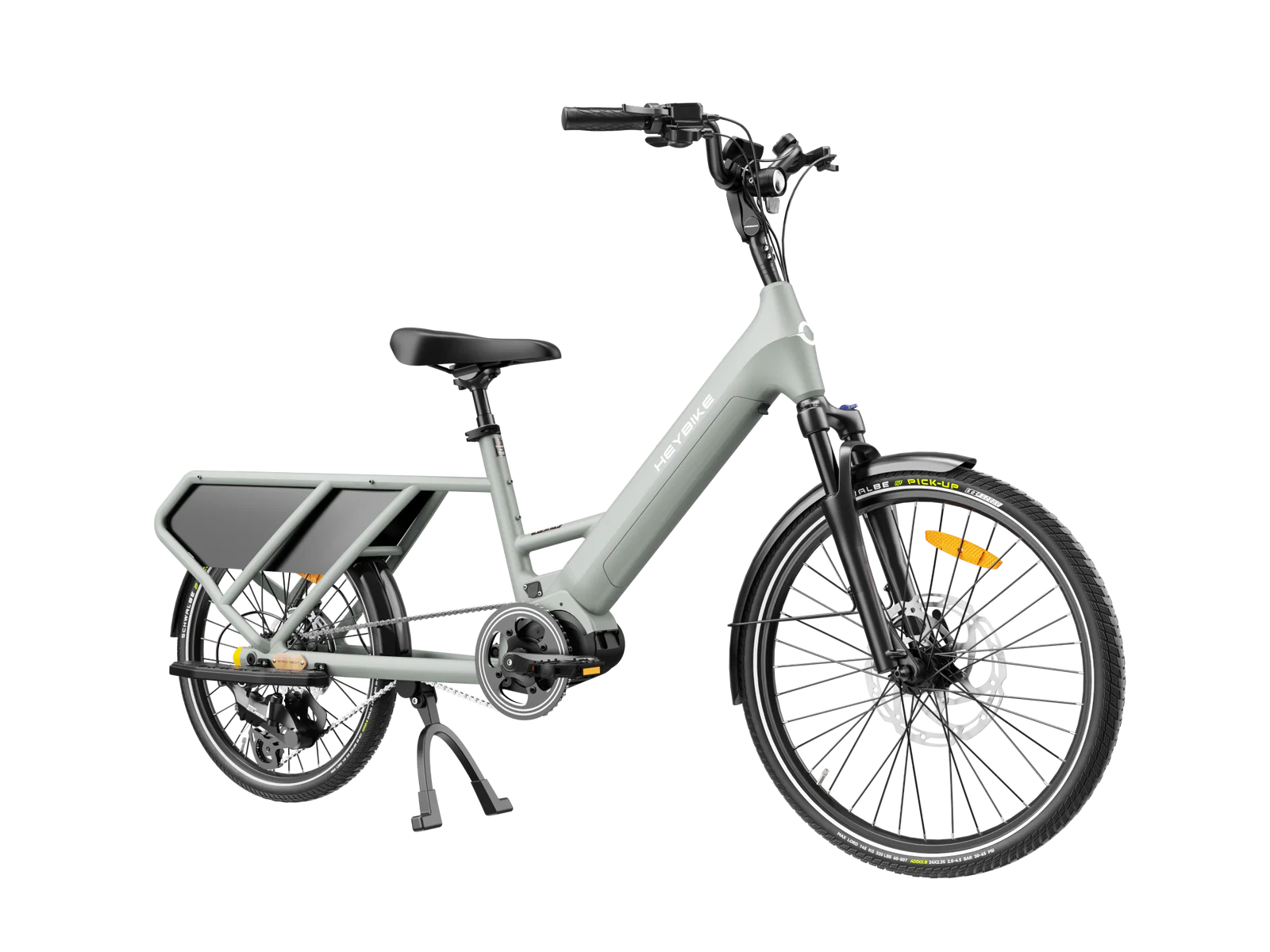

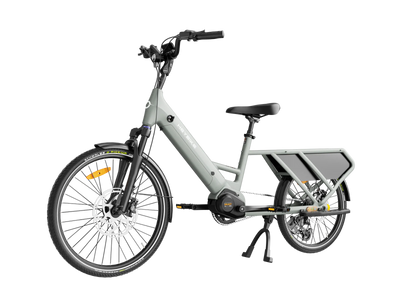

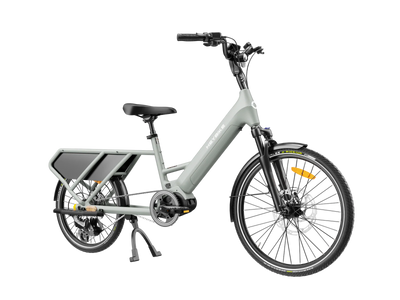

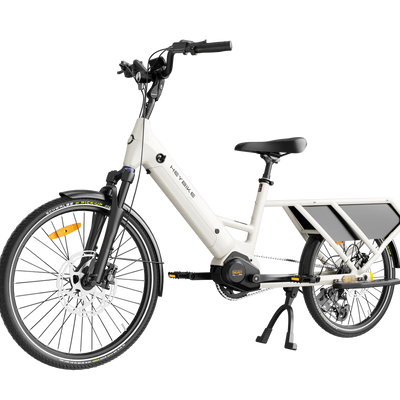

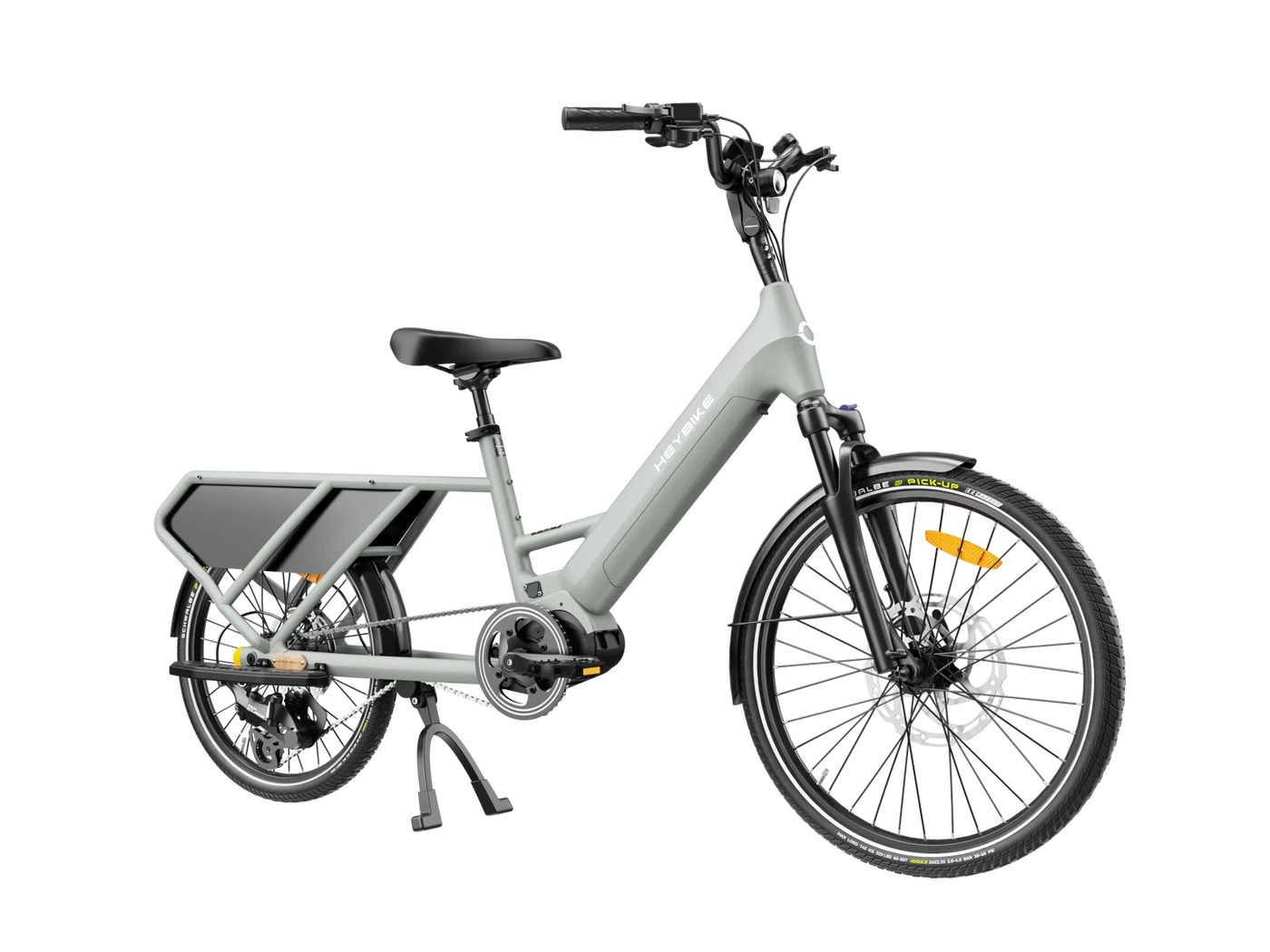

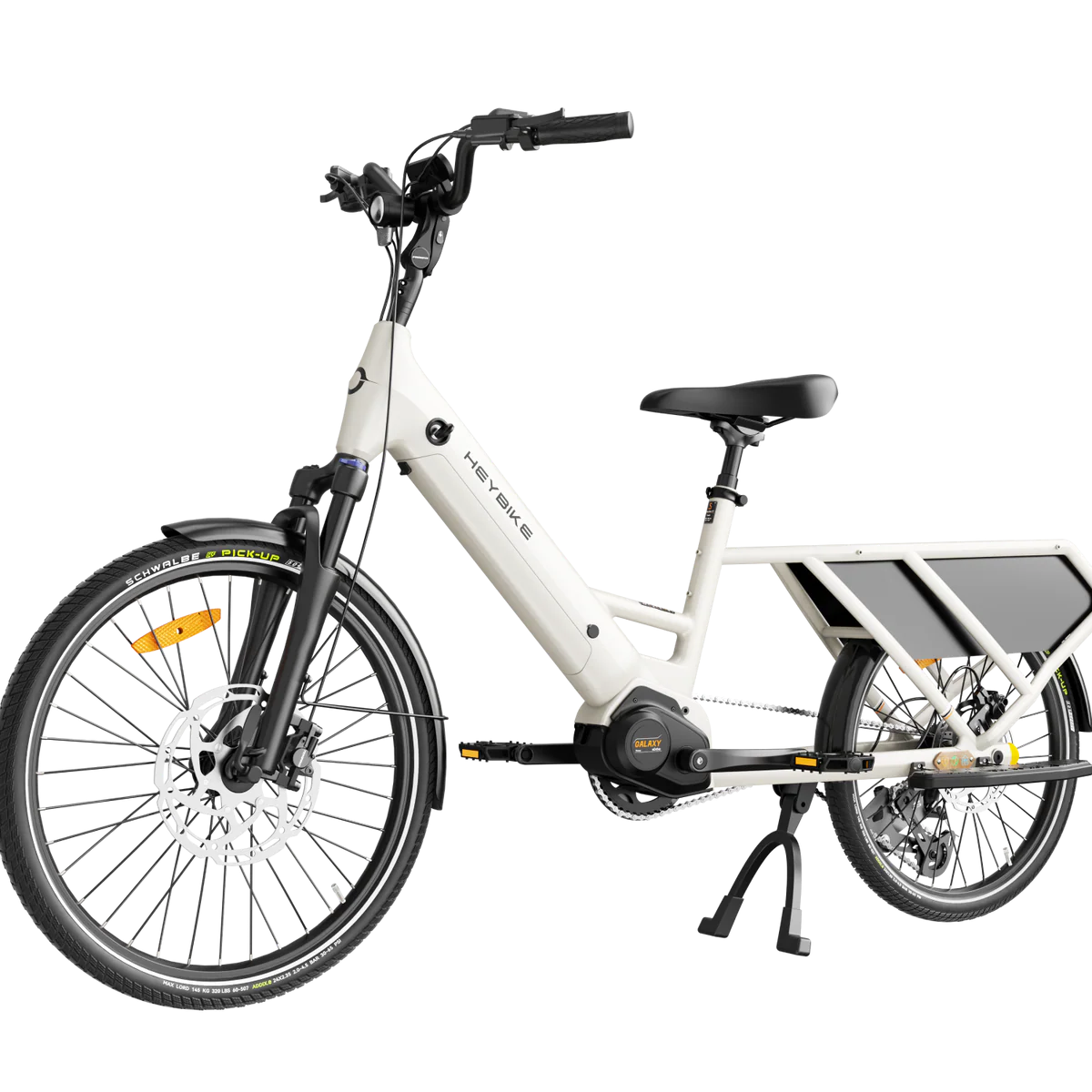

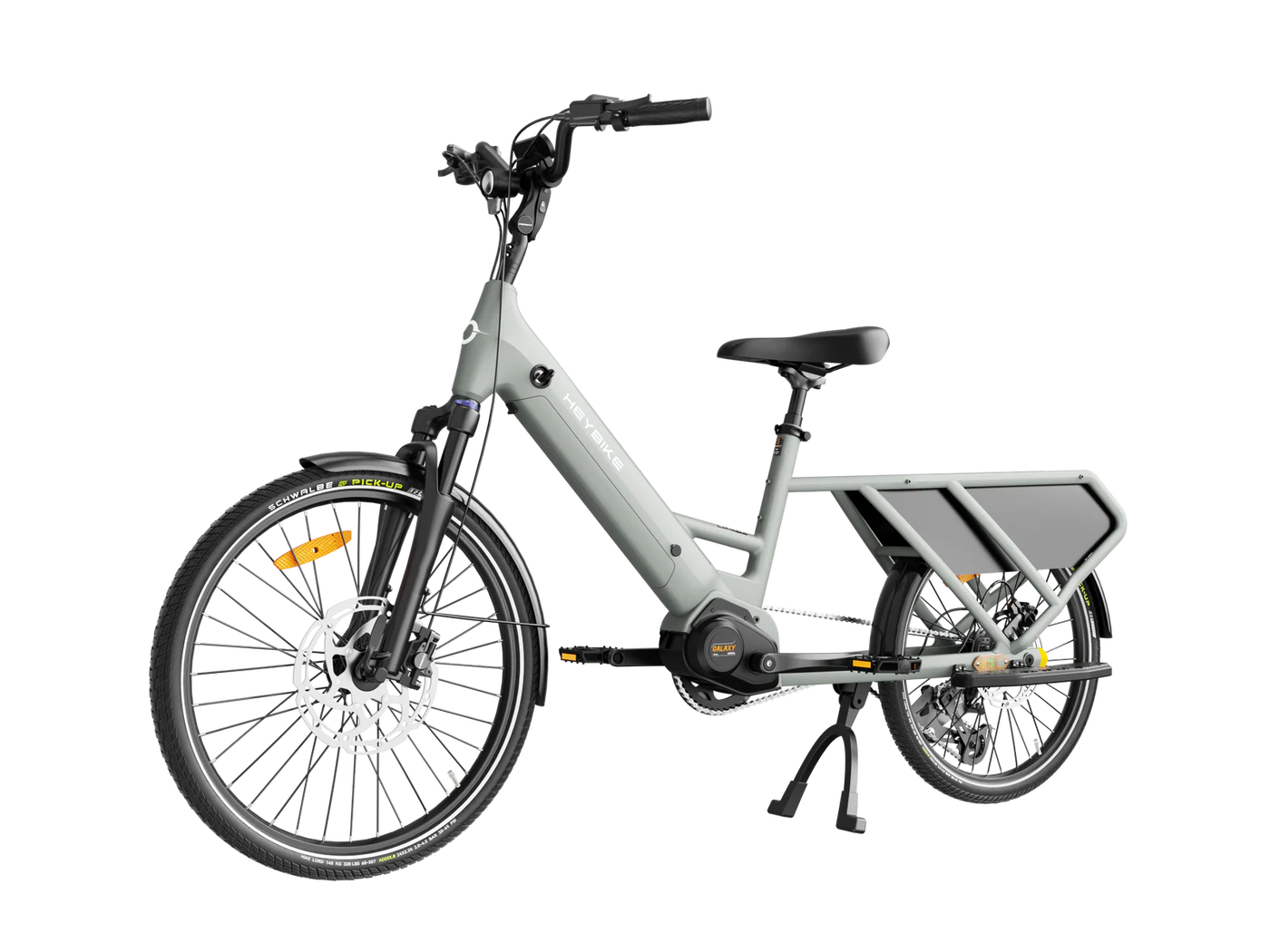

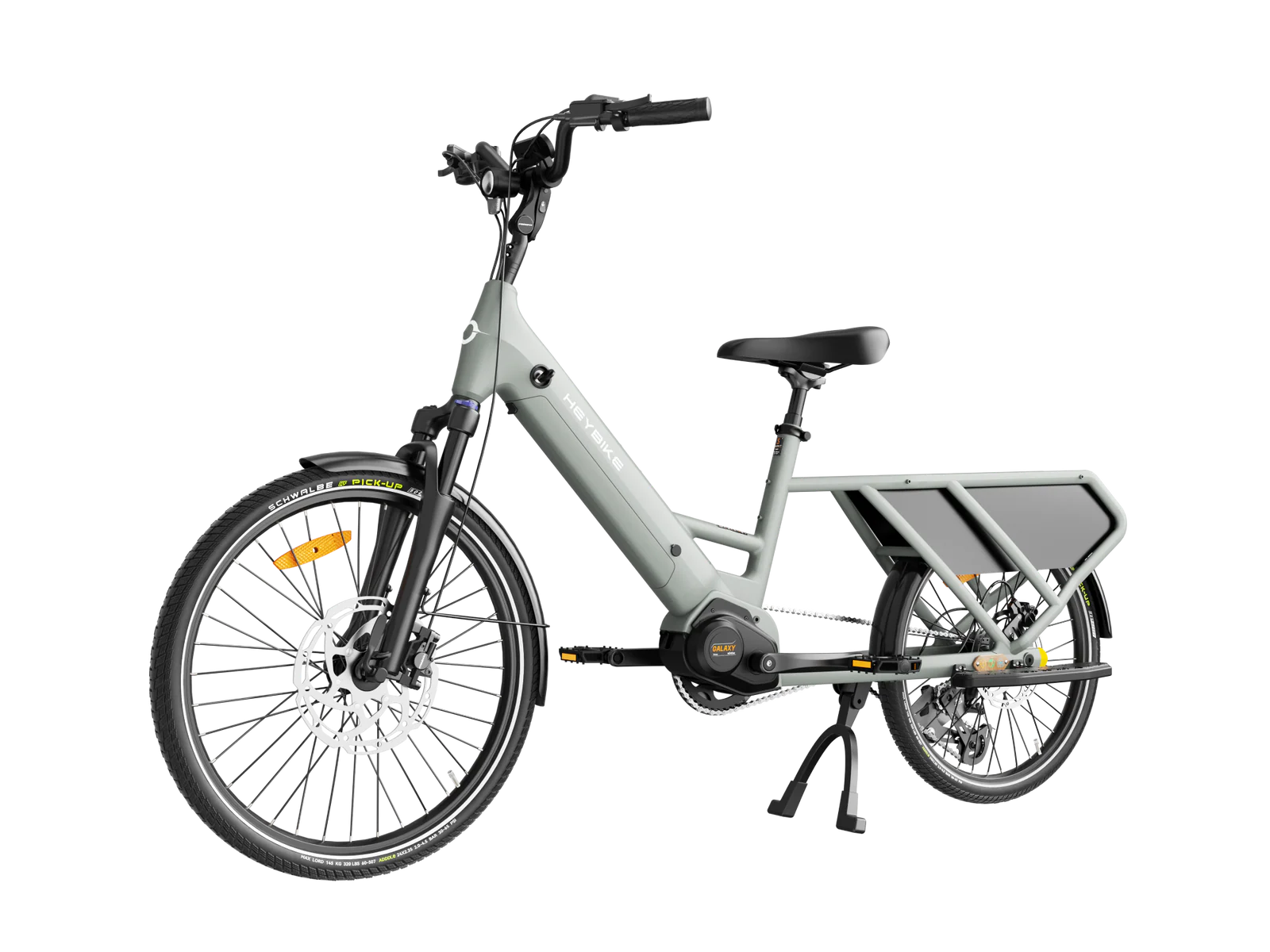

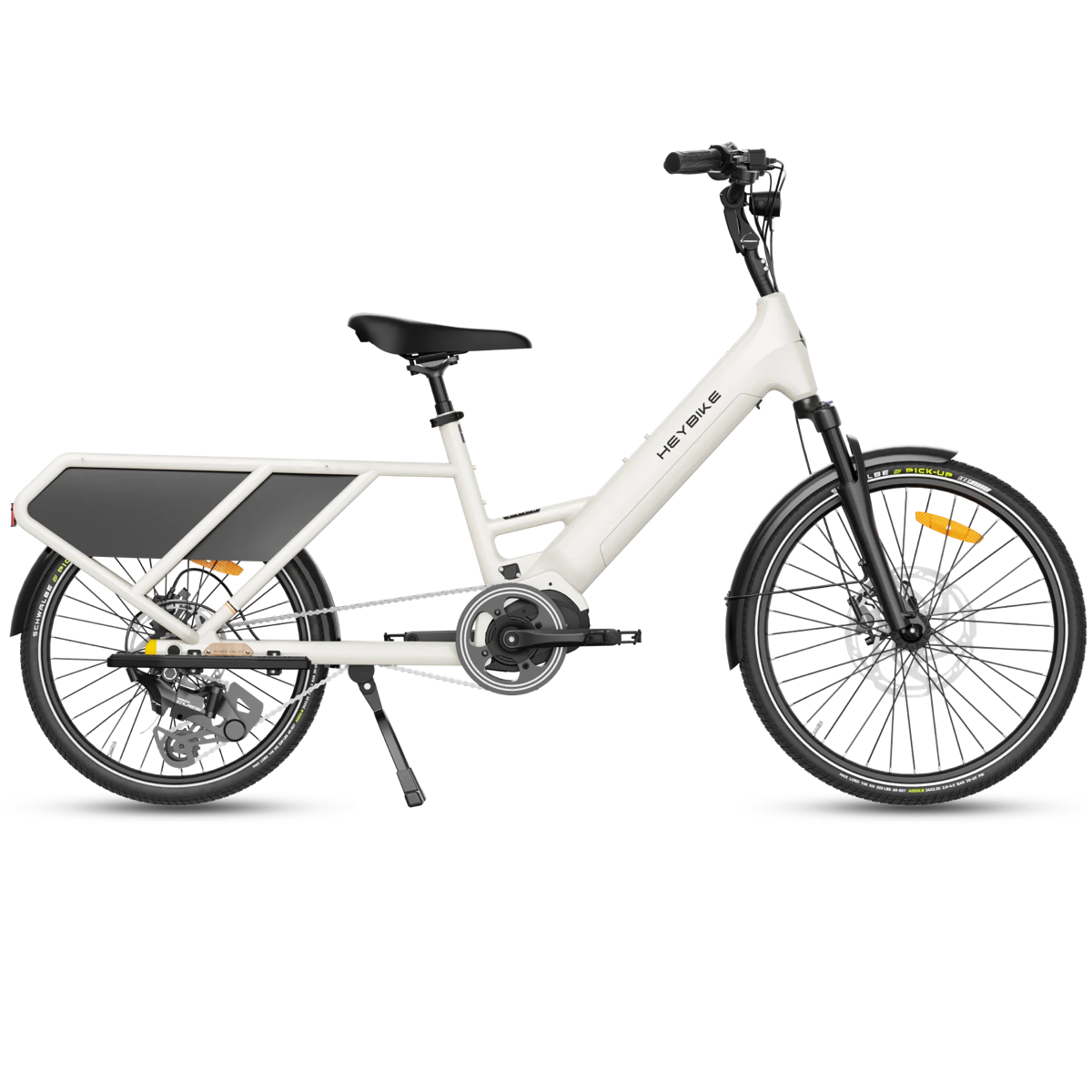

Heybike Galaxy X e-bike
ELECTRONICS
-
Motor: 36V 250W Mid Motor (Venus Plus)
-
Sensor Type: Torque Sensor
-
Display: Colour LCD Display
-
Battery: 500Wh Lithium Battery
-
Charger: 42V 100-240V 2A
-
Lights: Front white LED, Rear red LED,Turning light
-
Controller: Smart Controller
-
APP: Heybike App Bluebooth
COMPONENTS
-
Frame: 6061 Aluminum Alloy 17"
-
Tyres: Schwalbe 24""×2.35""/20""×2.35"" PICK UP/Black-Reflex
-
Speed Gears: Shimano CUES 9SP 11-41T
-
Brake: Shimano MT-200 Hydraulic Disc Brakes
-
Front Fork: Suspension Fork 686-24 T:60
-
Handlebar: Promax HB-T320 640mm
-
Chain: KMC eGlide
-
Saddle: Sello Royal ESSENZA PLUS
-
Seat post: Zoom Aluminium alloy W/suspension
-
Pedal: HF-808 Aluminum alloy
PERFORMANCE
-
Max speed: 25km/h
-
Max Torque: 100 N·m
-
Range: Up to 135 km with PAS Mode
-
Recharging Time: 6-8h
-
Weight: 30 kg
-
Max. Load: 150kg
| Description | Size (Inch) | |
|---|---|---|
| A | Seat tube | S: 17" |
| B | Chainstay | 22.8" |
| C | Effective Top Tube | 25.6" |
| D | Head Tube | 7.9" |
| E | Handlebar Height | 44.5" |
| F | Minimum Seat Height | 33.9" |
| G | Maximum Seat Height | 37.8" |
| H | Wheelbase | 52.0" |
| I | Total Length | 74.8" |
Please note that for this brand your order can take up to 4-5 busines days to be processed for in stock e-bikes, and depending on the warehouse location, delivery can take a further 5-10 days. If your order is shipped from Europe your order may take longer than this - we don't control where your order is shipped from so any delivery details are our best estimates. We will always provide the latest information where available from the brands, this is also updated to the website. Once available we will forward tracking details once supplied by the brand.
If your order contains accessories (from the same brand) then these are typically shipped independently from the e-bike, accessories are normally shipped from China and can take anything from a few weeks for in stock, to months to arrive if out of stock. Other accessories stocked by our store will be shipped by ourselves from the UK. Once provided we will provide you with tracking details. We're not able to give estimates for when accessories are shipped or when they arrive in the UK. While we have contact with this brand it's not always possible to get prompt answers to questions due to language and time zone.
Please bear these details in mind when placing your order and please be prepared to wait for your order.
Galaxy X : For heavy loads on long roads
Load it up, strap it on, then on hop on the Galaxy X, the e-carbo bike with a 100Nm mid-drive motor.
Whatever your cargo, the Galaxy X has you covered
The Galaxy X designed for riders who have loads to shift with its 150kg max pay load. Spec the Galaxy X to your e-cargo needs.
Mid-drive 100Nm motor
Equipped with the Heybike's Venus Plus System the Galaxy X delivers a strong torque for loaded rides and long roads.
250W mid-drive motor
100Nm max torque
500Wh capacity
135KM max range
If you prefer to have your bike shipped assembled and PDI checked then we have partnered with a specalist courier who can ship your bike from our workshop to your door. The bike will be assembled, PDI checked, charged and ready to ride!
Select option when adding bike to basket.
Adjustable Bars
Shimano MT-200 hydraulic disc brakes
Schwalbe Tyres
