ADO Beast 20F Folding Electric Bike
The ADO Beast 20F Folding Electric Bike is a robust and versatile e-bike engineered for both urban commuting and off-road adventures. With its powerful motor, advanced features, and durable construction, the Beast 20F is designed to deliver a seamless and exhilarating riding experience.
Key Features
Powerful Performance
-
Motor: Equipped with a 250W Hall brushless gear DC rear motor, the Beast 20F provides ample power to tackle various terrains, including inclines up to 40°.
-
Torque Sensor: The integrated torque sensor ensures responsive and efficient pedal assistance, adapting to your riding style for a natural feel.
Extended Range
-
Battery: Powered by a 36V/14.5Ah lithium battery, offering an impressive range of up to 120 km on a single charge, making it ideal for long-distance rides.
- Charging Time: The battery fully charges in approximately 5–7 hours, ensuring minimal downtime between ride.
Superior Comfort and Control
-
Tyres: Fitted with 20" x 4.0" fat tyres, the bike provides enhanced stability and grip across diverse surfaces, from city streets to rugged trails.
-
Suspension: The front fork shock absorber and shock-absorbing seat work together to minimize vibrations, delivering a smooth and comfortable ride.
Advanced Braking System
-
Brakes: Features dual hydraulic disc brakes, offering reliable and responsive stopping power in various weather conditions.
Smart Connectivity
-
Display: The IPX7-rated IPS colour display provides clear visibility of essential metrics, including speed, battery level, and distance traveled.
-
App Integration: Connect to the ADO Smart App via Bluetooth for navigation, ride statistics, and customer support, enhancing your overall riding experience.
Durable and Practical Design
-
Frame: Constructed from high-quality aluminium alloy, the frame ensures durability while maintaining a manageable weight of 28.5kg.

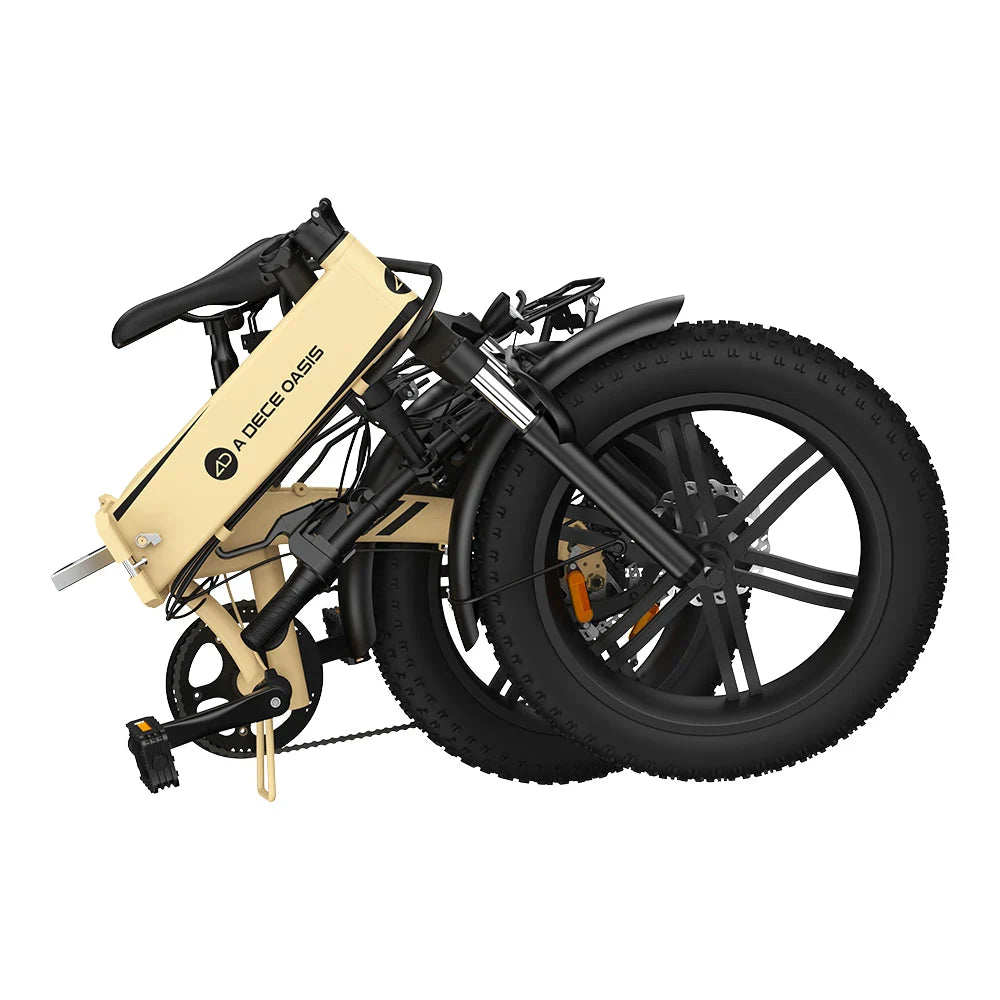

- Foldability: The bike's foldable design allows for easy storage and transport, with folded dimensions of 1090 x 520 x 735mm.
Safety Features
-
Lighting: Equipped with a 1200-lumen IPX5 waterproof headlight and a reflector tail light, ensuring visibility during night rides.
-
Load Capacity: Supports a maximum load of 120 kg, accommodating a wide range of riders.
Frame: Lightweight Aluminum Frame
Motor: 250W | 65Nm | rear hub
Battery: 36V | 36V | 504Wh
Sensor: Torque sensor
Transmission: Shimano 7 speed
Display: IPS colour
Forks: Front suspension forks
Chain Ring: 52T
Brakes: Hydraulic disc brakes
Headlight: Front headlight
Pedals: Folding design
Wheels: 20"
Tyres: 4"
Charging time: 5-7hrs
Rider Heights: 165cm-200cm
Net weight: 27.3kg (excluding all accessories)
Max load: 120kg
Rider Heights: 165cm-200cm
A: Maximum Seat Height: 1,160mm
B: Minimum Seat Height: 840mm
C: Stand Over Height: 710mm
D: Seat Tube Length: 385mm
E: Minimum Handlebar Height: 1,240mm
F: Maximum Handlebar Height: 1,260mm
G: Length from Centre Axle to Front Wheel: 700mm
H: Wheelbase: 1,135mm
I: Top Tube Length: 620mm
J: Overall Length: 1,750mm
K: Bottom Bracket Height: 240mm
Package Size: 1,010x490x730mm
If you prefer to have your bike shipped assembled and PDI checked then we have partnered with a specalist courier who can ship your bike from our workshop to your door. The bike will be assembles, PDI checked, charged and ready to ride!
Select when adding bike to basket.
Suspension
Gears
Brakes
Connect to the ADO App to record your rides and cast directions to the bike's display. Need support? Contact ADO support through the app.
ADO Smart System
ADO Smart App: Intelligent control system
App navigation + Customer Services Suppoert + bluetooth display
Average speed + Maximum Speed + Total Distance + Trip Distance
Absolute Power
The ADO beast boasts a 65Nm rear hub motor and Shimano 7 speed cassette, that's enough torque and gears for climbing the steepest of hills
Front light
Frame
