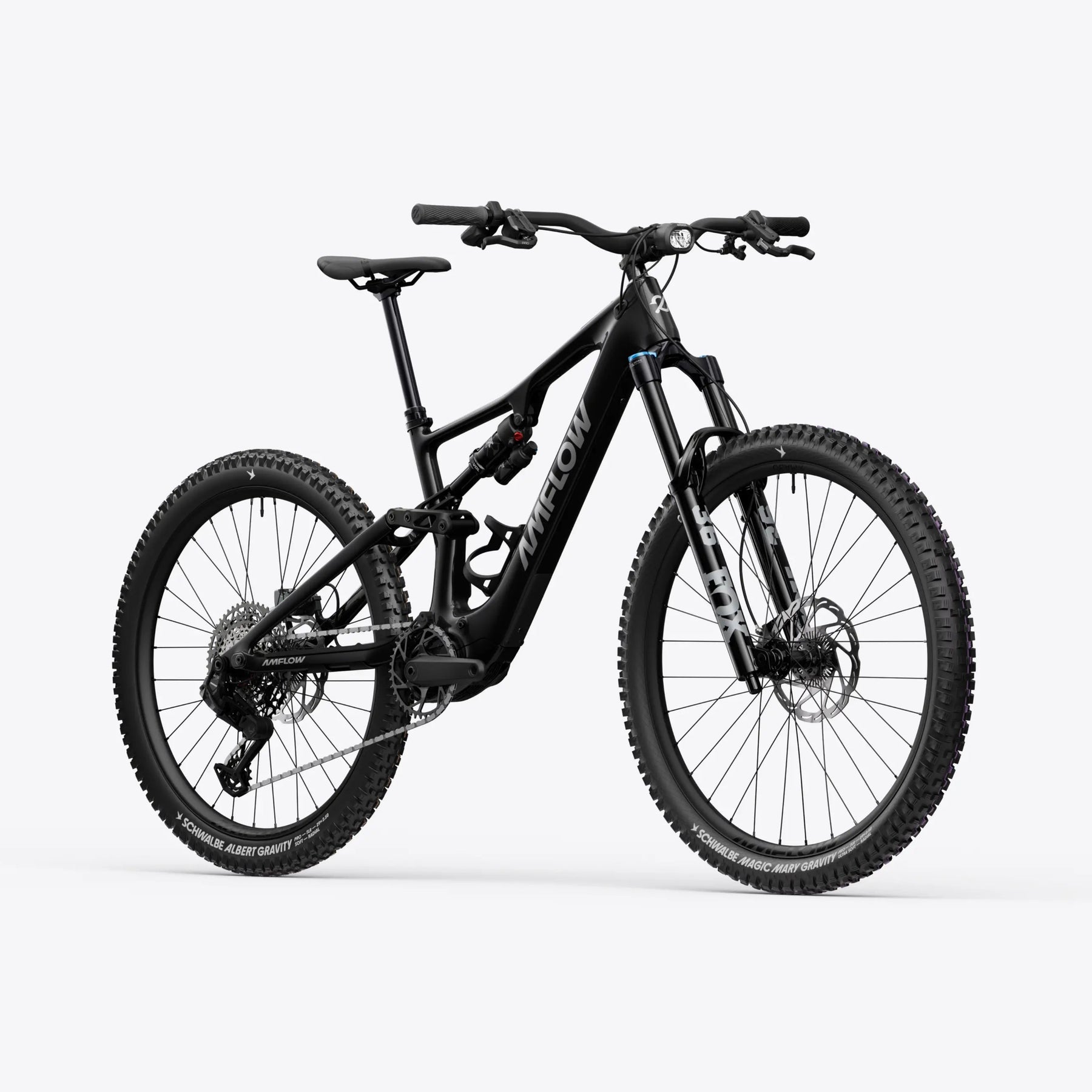

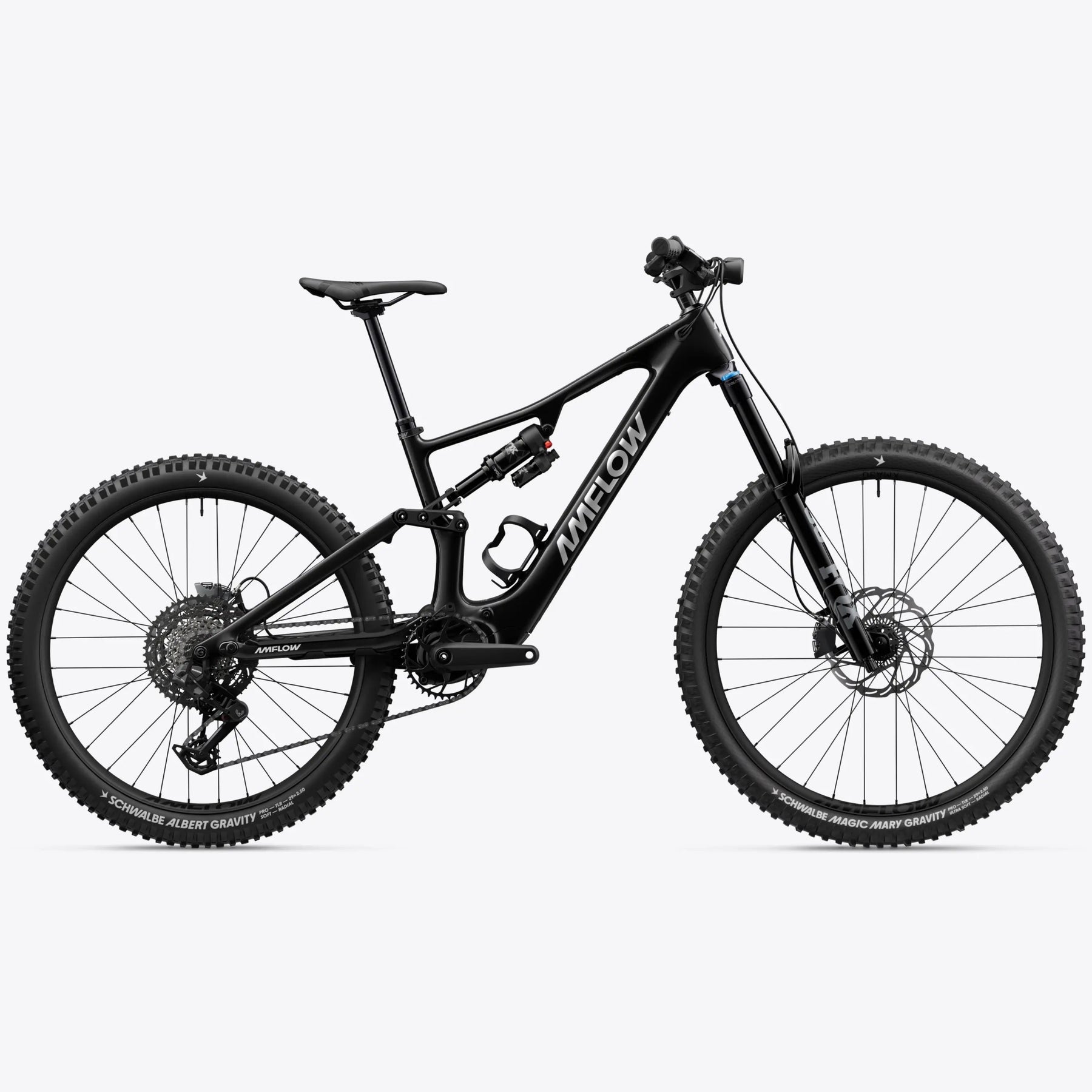

Amflow PX Carbon electric mountain bike
Amflow PX Carbon — Full-Power Performance, Featherweight Feel
The Amflow PX Carbon rewrites the rulebook for full-power e-MTBs. Built around the all-new Avinox M2S motor, it delivers the highest power-to-weight ratio of any legal e-MTB on the market — staying within UK regulations while legally delivering 150Nm of torque and massive peak wattage for explosive bursts on brutal climbs. Paired with an ultra-slim carbon frame and a 700Wh integrated battery, this is a bike that climbs like a featherweight and descends like a downhill rig.
Key Features
- Motor: Avinox M2S drive unit — 150Nm peak torque, 1,500W peak power, 250W continuous (UK legal)
- Battery: 700Wh fully integrated
- Frame: 2.4kg carbon frame with a slimmer downtube, 20.6kg total weight

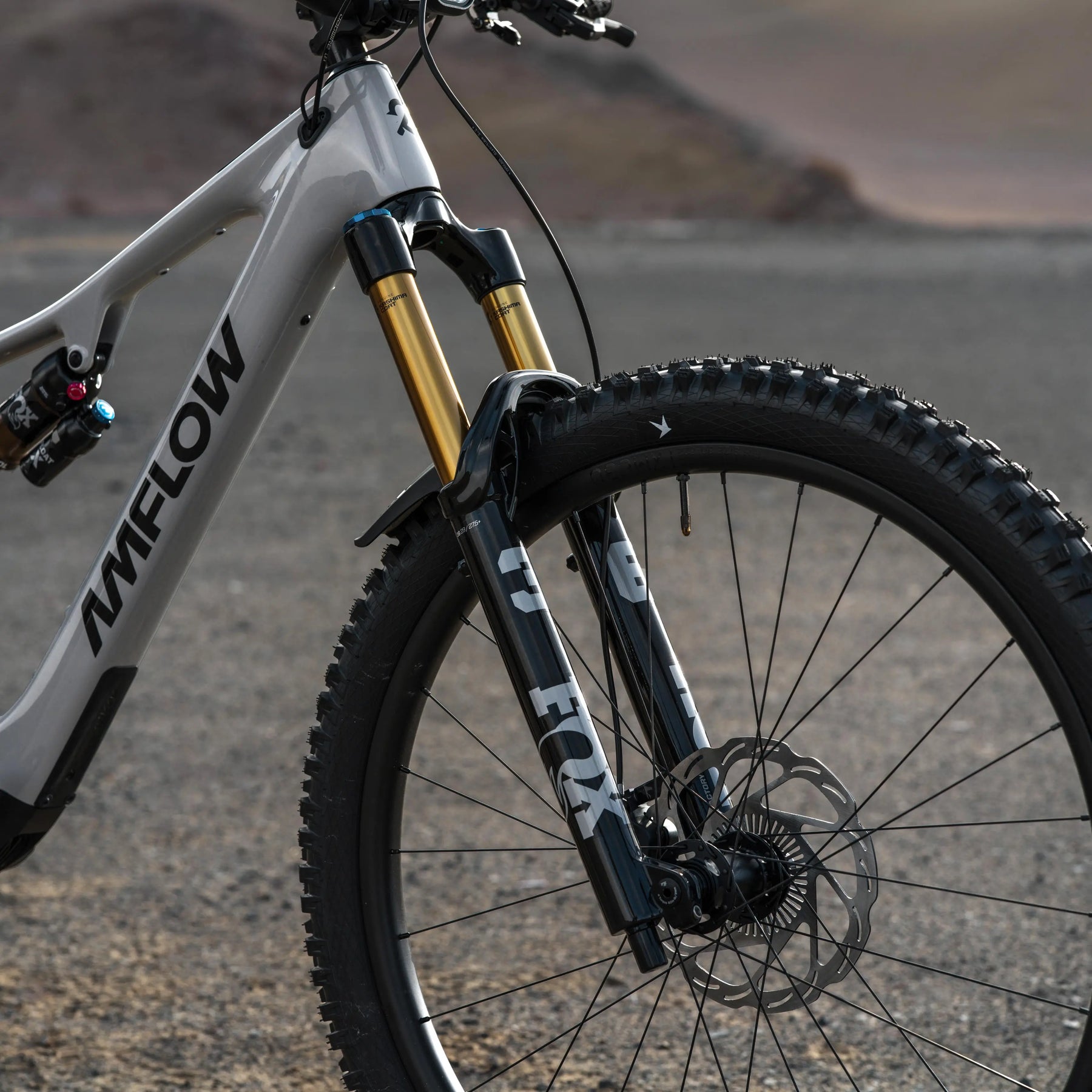

- Suspension: MY2027 FOX 36 Performance fork (160mm) and FOX Float X Performance shock (150mm)
- Wheels: Alloy mullet setup — 29" front, 27.5" rear
- Tyres: Schwalbe Magic Mary (front) / Schwalbe Albert (rear), Gravity Pro construction
- Brakes: Magura Gustav Pro 4-piston hydraulic discs
- Drivetrain: SRAM S1000 Eagle Transmission (wireless, 1x12)
- Geometry: Adjustable across 40 configurations — 5 head angle positions, 2 bottom bracket heights, 4 chainstay lengths
- Connectivity: DJI Avinox app via Bluetooth — assist customisation, ride data, anti-theft tracking
Why It Stands Out By centralising mass around the motor, the PX platform enhances balance, traction and control — delivering confident climbing alongside stability on high-speed descents. The result is a composed, predictable ride across technical terrain, whether you're grinding up a fire road or hammering down a black run.
Warranty & Service 5-year frame warranty, 2-year electrics warranty, 1-year warranty on Amflow-manufactured components. Full pre-delivery inspection and setup included.

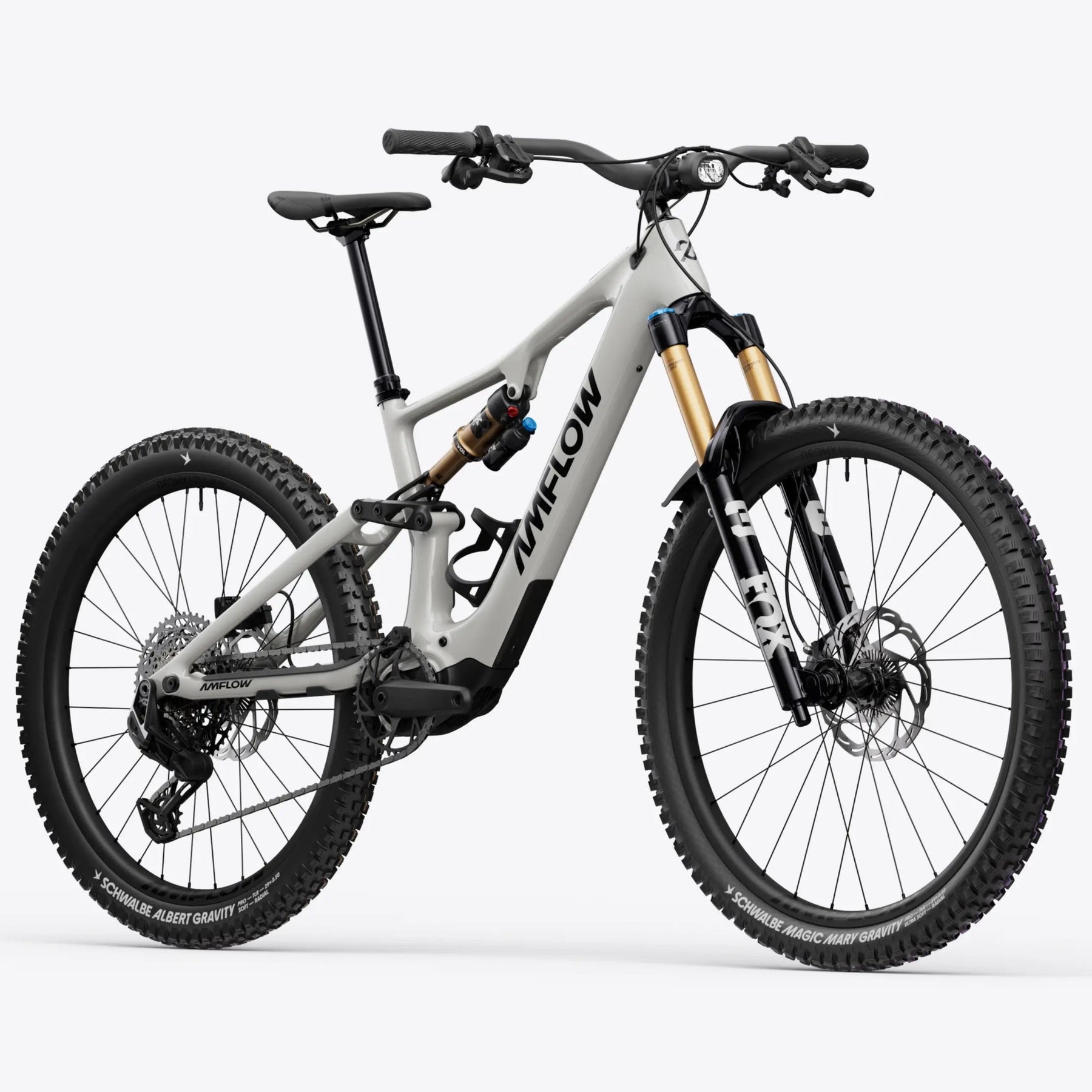

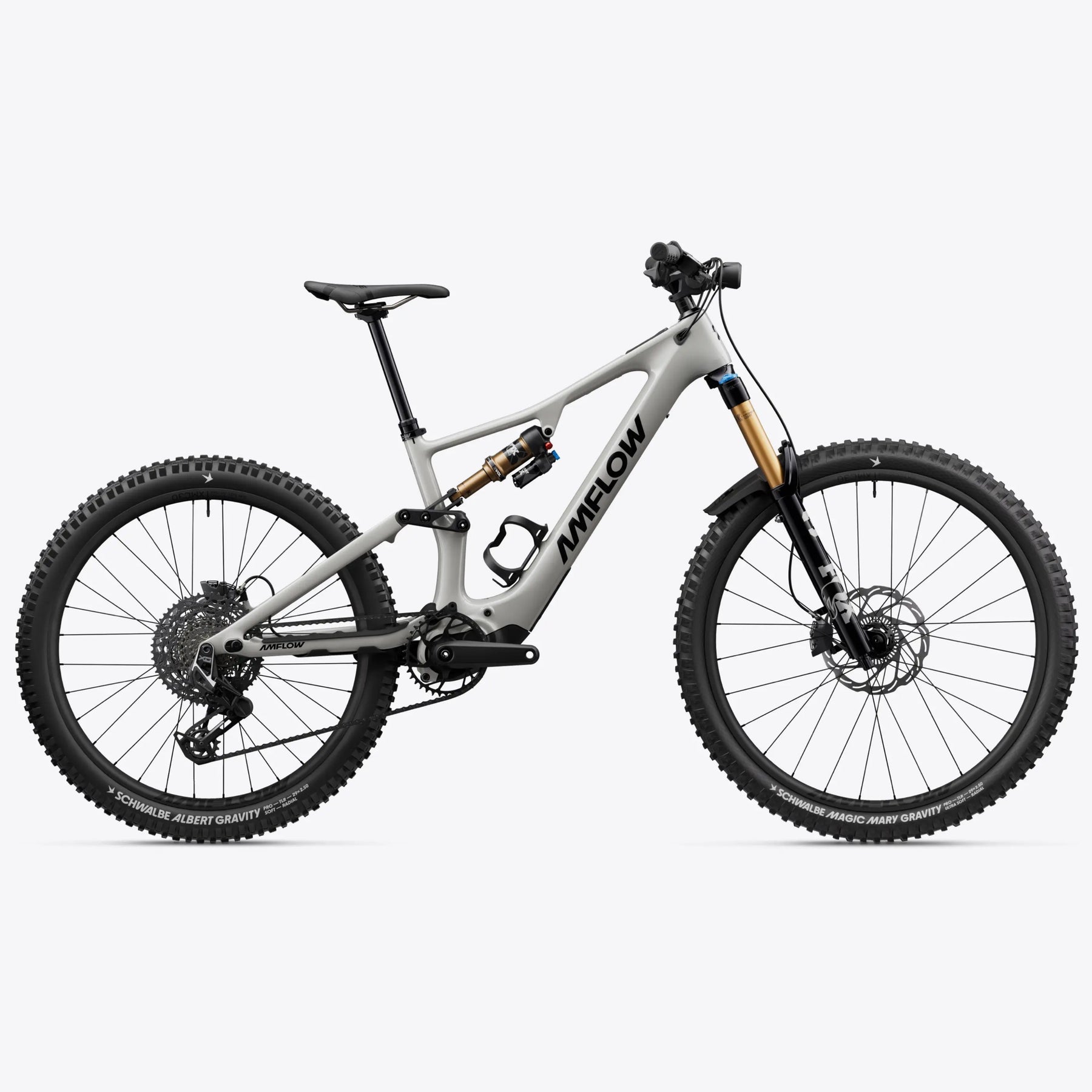

The Carbon Pro adds a Factory-level FOX suspension package and SRAM S1000 Eagle AXS Transmission .
|
|
Amflow PX Carbon |
Amflow PX Carbon Pro |
|
Frame |
Amflow PX Carbon Frame |
Amflow PX Carbon Frame |
|
|
Phantom Black |
Moonstone Gray |
|
|
40 adjustable geometry configurations * |
40 adjustable geometry configurations * |
|
|
Compatible with 27.5″ and 29″ rear wheels |
Compatible with 27.5″ and 29″ rear wheels |
|
|
|
|
|
E-Bike System |
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m |
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m |
|
|
Avinox Screen: 2-inch OLED Control Display |
Avinox Screen: 2-inch OLED Control Display |
|
|
Avinox Integrated Battery: 700Wh |
Avinox Integrated Battery: 700Wh |
|
|
Avinox Wireless Controllers: Right and left sides |
Avinox Wireless Controllers: Right and left sides |
|
|
Avinox Fast Charger: 12A/508W |
Avinox Fast Charger: 12A/508W |
|
|
|
|
|
Rear shock |
FOX 36 Performance |
FOX 36 Factory |
|
|
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset |
160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset |
|
|
|
|
|
Drivetrain |
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur |
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur |
|
|
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox |
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox |
|
|
Shift Levers: SRAM AXS Pod Controller |
Shift Levers: SRAM AXS Pod Rocker Controller |
|
|
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T |
Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T |
|
|
Chain: SRAM Eagle 70 Transmission Flattop Chain |
Chain: SRAM X0 Eagle Transmission Chain |
|
|
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) |
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) |
|
|
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
|
|
|
|
|
Brakes |
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers |
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers |
|
|
Magura Sensor Rotor (203mm, 2.5mm) |
Magura Sensor Rotor (203mm, 2.5mm) |
|
|
|
|
|
Wheels |
Amflow XMA-30 Mullet Version |
Amflow XMA-30 Mullet Version |
|
|
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready |
Front Rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready |
|
|
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready |
Rear Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready |
|
|
Spokes: SAPIM E-Light |
Spokes: SAPIM E-Light |
|
|
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt |
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt |
|
|
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG |
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD |
|
|
|
|
|
Tyres |
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready |
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready |
|
|
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
|
|
|
|
|
Handlebar |
Amflow Enduro Alloy Handlebar |
Amflow Enduro Carbon Handlebar |
|
|
40mm Rise, 800mm Width, 35mm Diameter |
40mm Rise, 800mm Width, 35mm Diameter |
|
|
5-degree upsweep, 9-degree backsweep |
5-degree upsweep, 9-degree backsweep |
|
|
|
|
|
Grips |
Amflow Enduro Grip 2 Lock-on Grips |
Amflow Enduro Grip 2 Lock-on Grips |
|
|
|
|
|
Stem |
Amflow Mountain Bike Split Stem |
Amflow Mountain Bike Split Stem |
|
|
Length: 35mm |
Length: 35mm |
|
|
Clamping Diameter: 35mm |
Clamping Diameter: 35mm |
|
|
|
|
|
Saddle |
Amflow Mountain Saddle |
Amflow Mountain Saddle Titanium |
|
|
|
|
|
Dropper Post |
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm) |
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm) |
|
|
M/L Frame: 190mm |
M/L Frame: 190mm |
|
|
XL Frame: 210mm |
XL Frame: 210mm |
|
|
XXL Frame: 230mm |
XXL Frame: 230mm |
|
|
|
|
|
Accessories |
Avinox Front Light |
Avinox Front Light |
|
|
Amflow Bottle Cage |
Amflow Bottle Cage |
|
|
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip) |
IoT Nano SIM Card |
|
|
5/10mm Dropper Post Travel Reducing Spacer |
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip) |
|
|
Rear Light |
Schwalbe Clik Valve Conversion Set |
|
|
Torque Wrench |
FOX 36 Mud Guard (Short) |
|
|
Clear Frame Protection Film |
5/10mm Dropper Post Travel Reducing Spacer |
|
|
Shock Pump |
Rear Light |
|
|
Quick Start Guide |
Torque Wrench |
|
|
|
Clear Frame Protection Film |
|
|
|
Shock Pump |
|
|
|
Quick Start Guide |
Take a closer look:
Compact, More Capable
Smart Offline Navigation
Charge Fast, Ride Free
Head Tube Angle
With a default head tube angle of 64.2°, the adjustable headset cups, offer 5 levels of fine tuning (-1°, -0.5°, 0°, +0.5°, +1°). A slacker setting increases trail for greater high speed stability and a reduced risk of going over the bars. A steeper setting improves agility and climbing efficiency while making the bike less prone to understeer.
Bottom Bracket Height
A bottom bracket height adjustable to two positions, 345mm or 349mm lets you adapt precisely to different terrain. The 349mm high setting helps you clear rough obstacles with confidence and reduces the risk of bottoming out, while the 345mm setting lowers the bike's centre of gravity for stonger cornering grip.
Chain Stay Length
The 4-position adjustable chainstay (438mm to 451mm) offers flexible geometry tuning while accommodating 29" wheels, delivering outstanding rollover capability.
Drive Unit
Control Display
Amflow Cockpit
Brakes
Suspension
Dropper Post

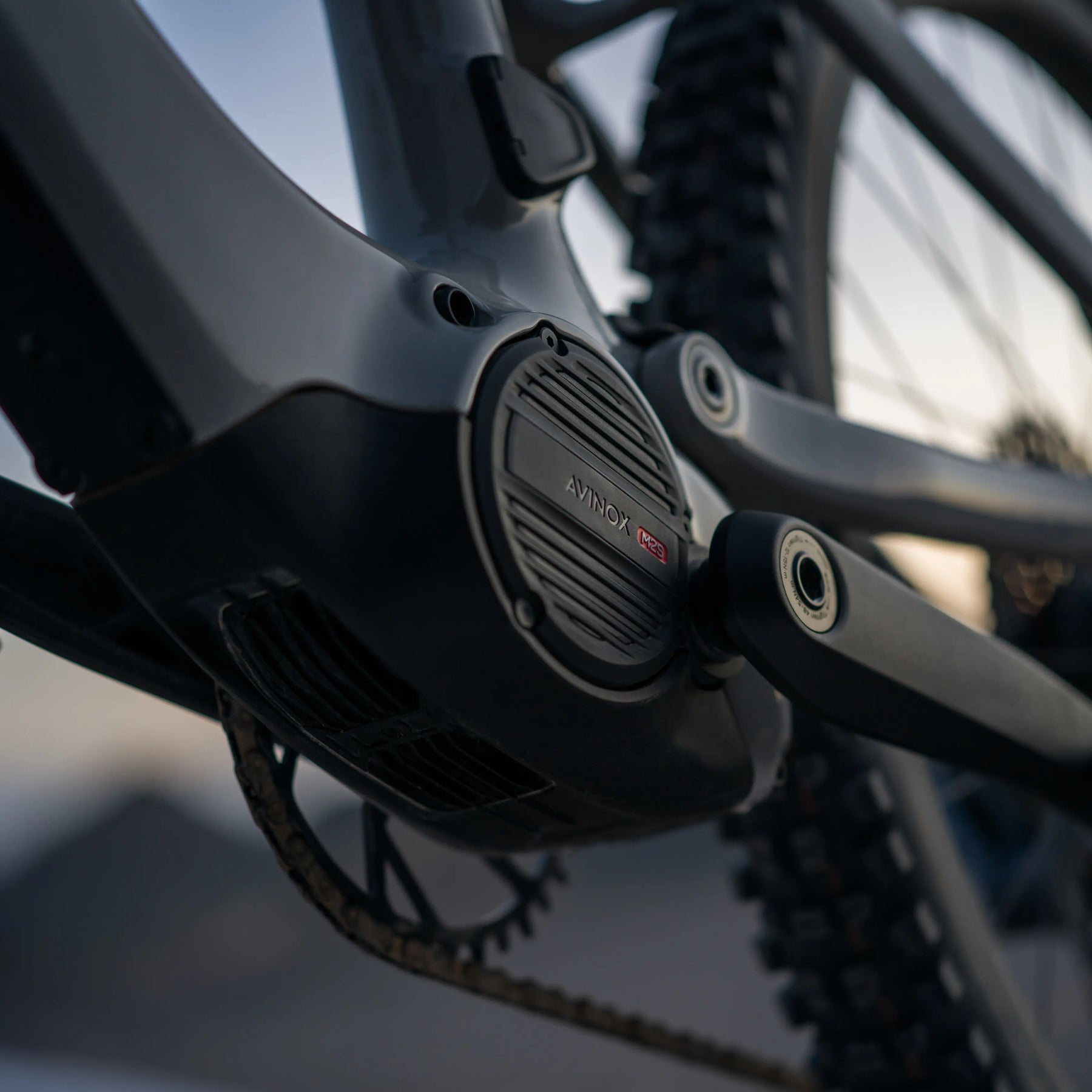

Max Torque: 150Nm | M2S Drive Unit Weight 2.59kg | Peak Power 1,500W
Surging Power, Naturally Refined
Power delivery shouldn't feel abrupt. The Avinox M2S Drive Unit utilises multiple high-precision sensors and intelligent algorithms to adjust output in real-time, delivering a natural, linear pedalling feel. The Avinox Drive System also features a specialised Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 150Nm of torque and 1500W high-power assistance.
Charge Fast, Ride Free
Charge Fast, Ride FreeA 700Wh high capacity battery paired with 3x super fast charging supports not only all-day epic rides but also allows you to quickly recharge during breaks, eliminating range anxiety.
0% to 100% in just about 1 hour 46 mins

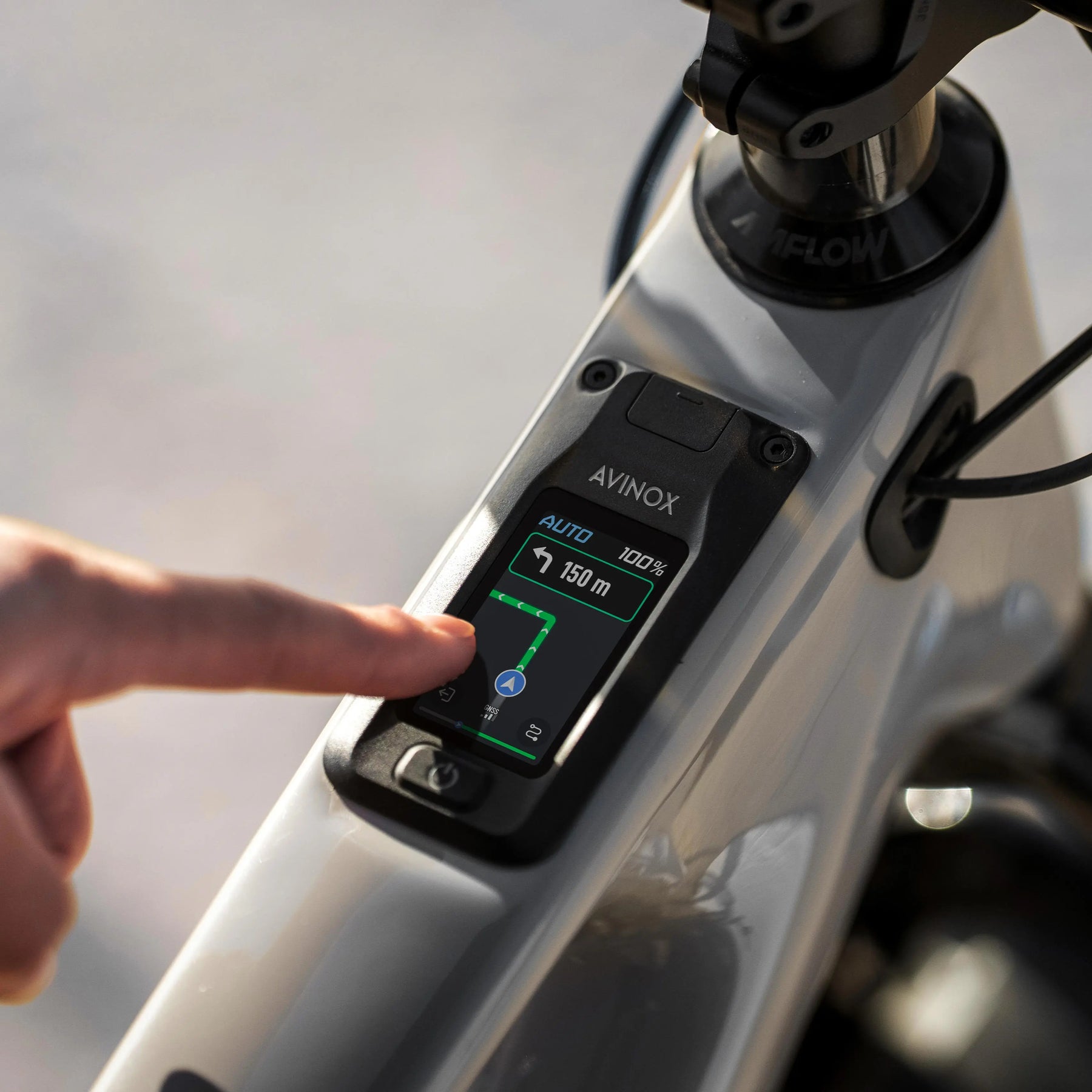

Smart Online Navigation
The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronisation and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.
Smart Heart Rate Control
No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.
Smart Companion
Amflow PX seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.
Smartphone Connectivity: Supports GPS, Bluetooth locating, and bike protection features
Smart Light Control: Wireless controllers allow one click switching of the front and toggling of high/low beams for convienent operation
Custom Assist Modes: Customize your exclusive interaction interface within the Avinox Ride App.
