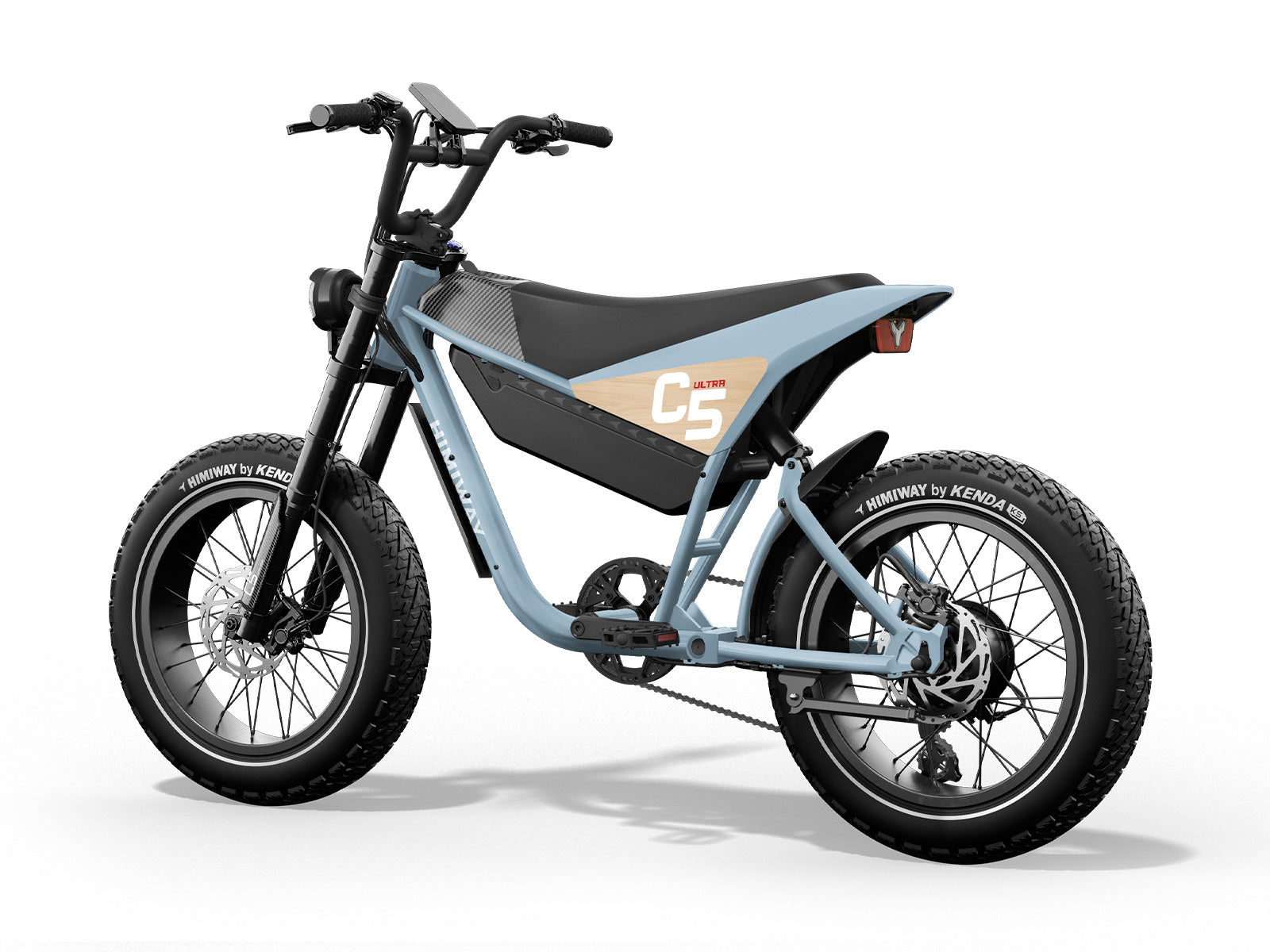

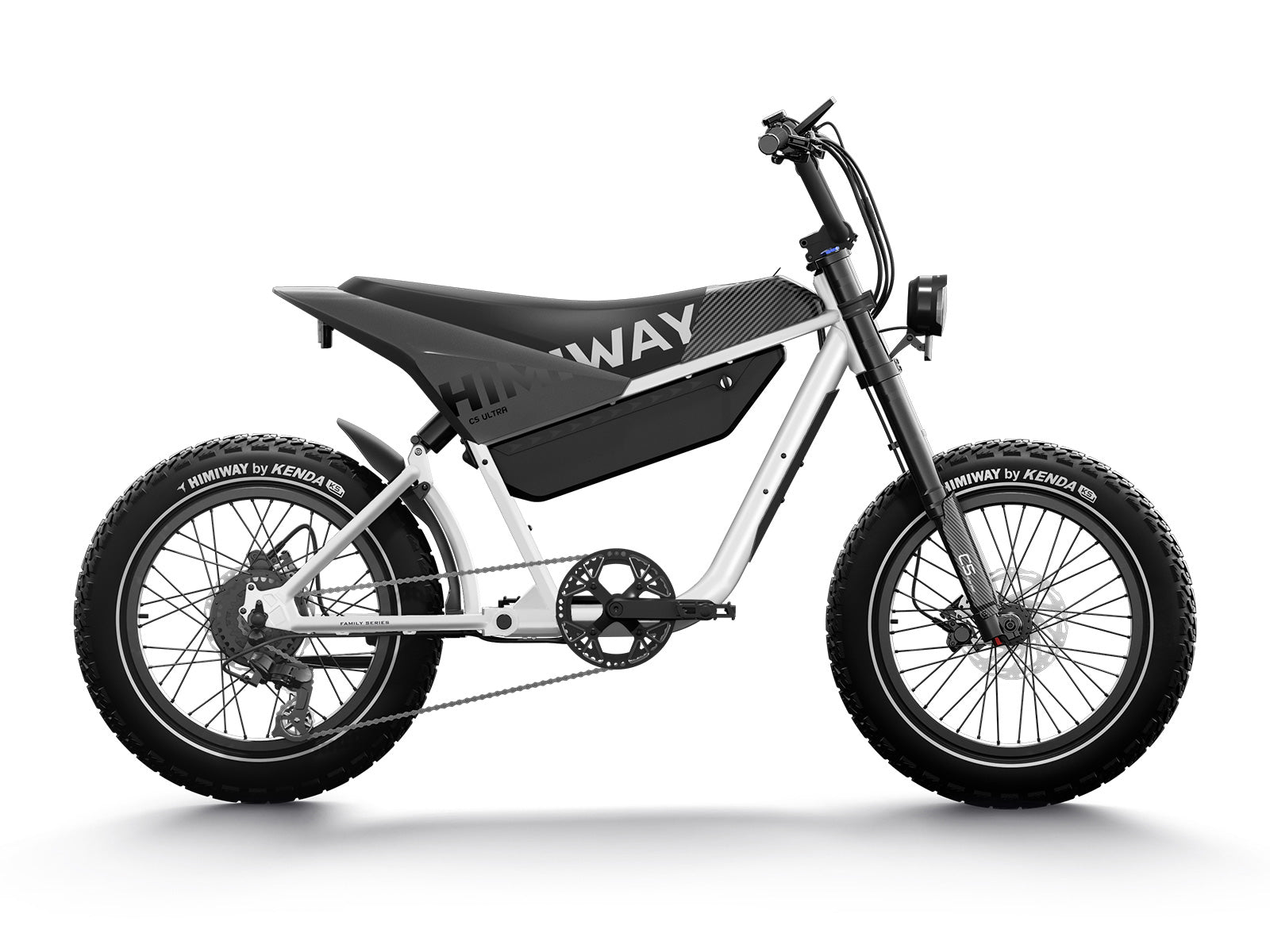

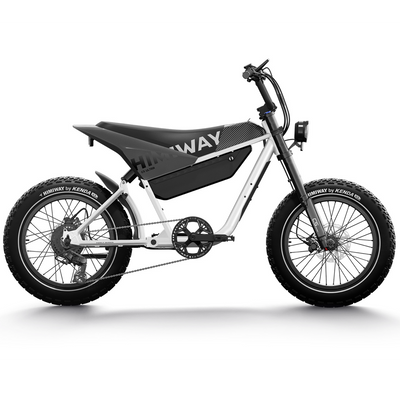

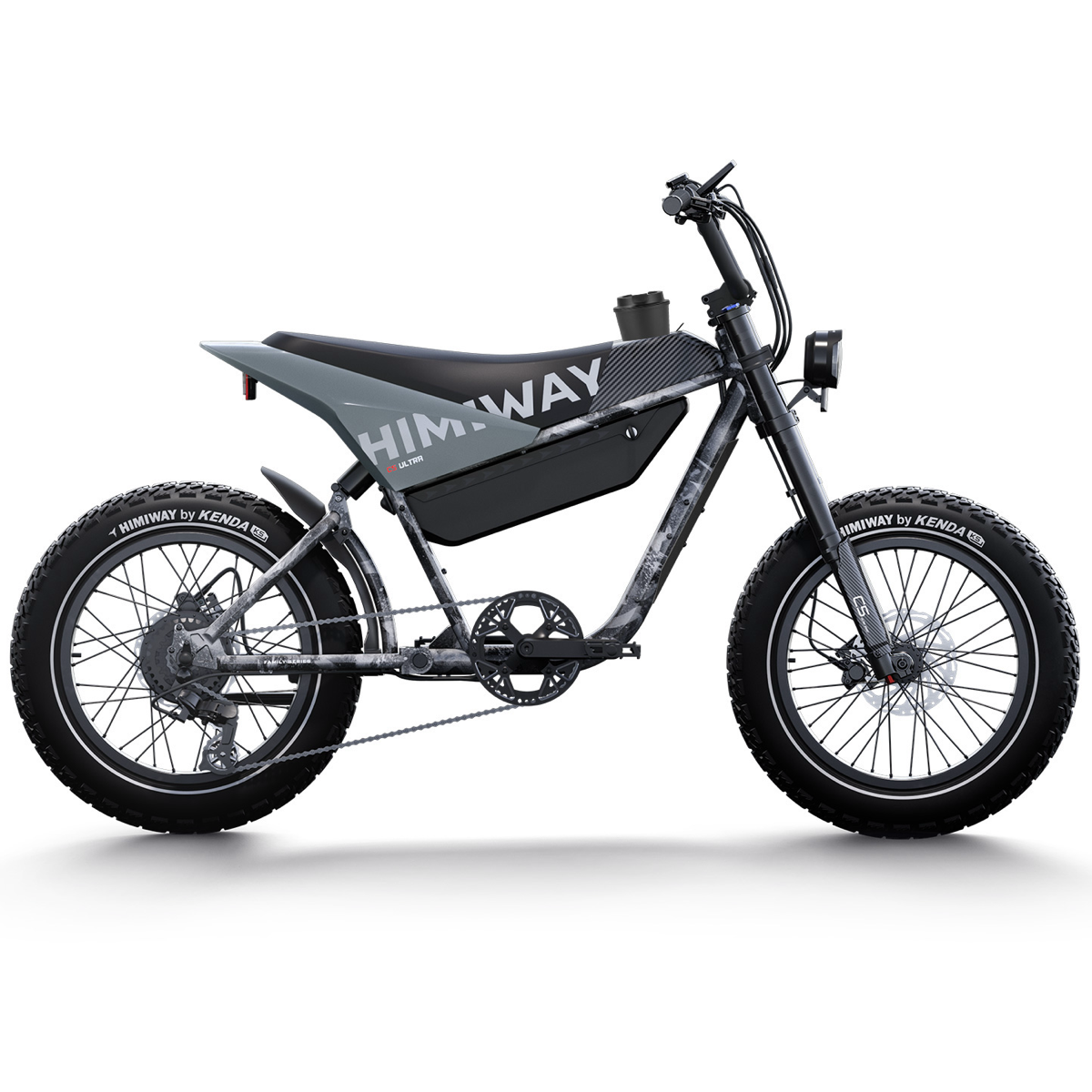

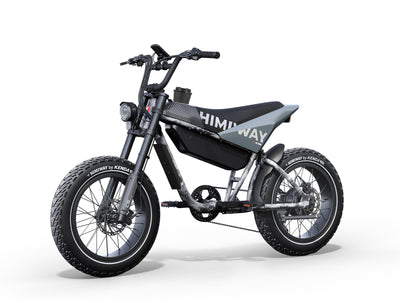

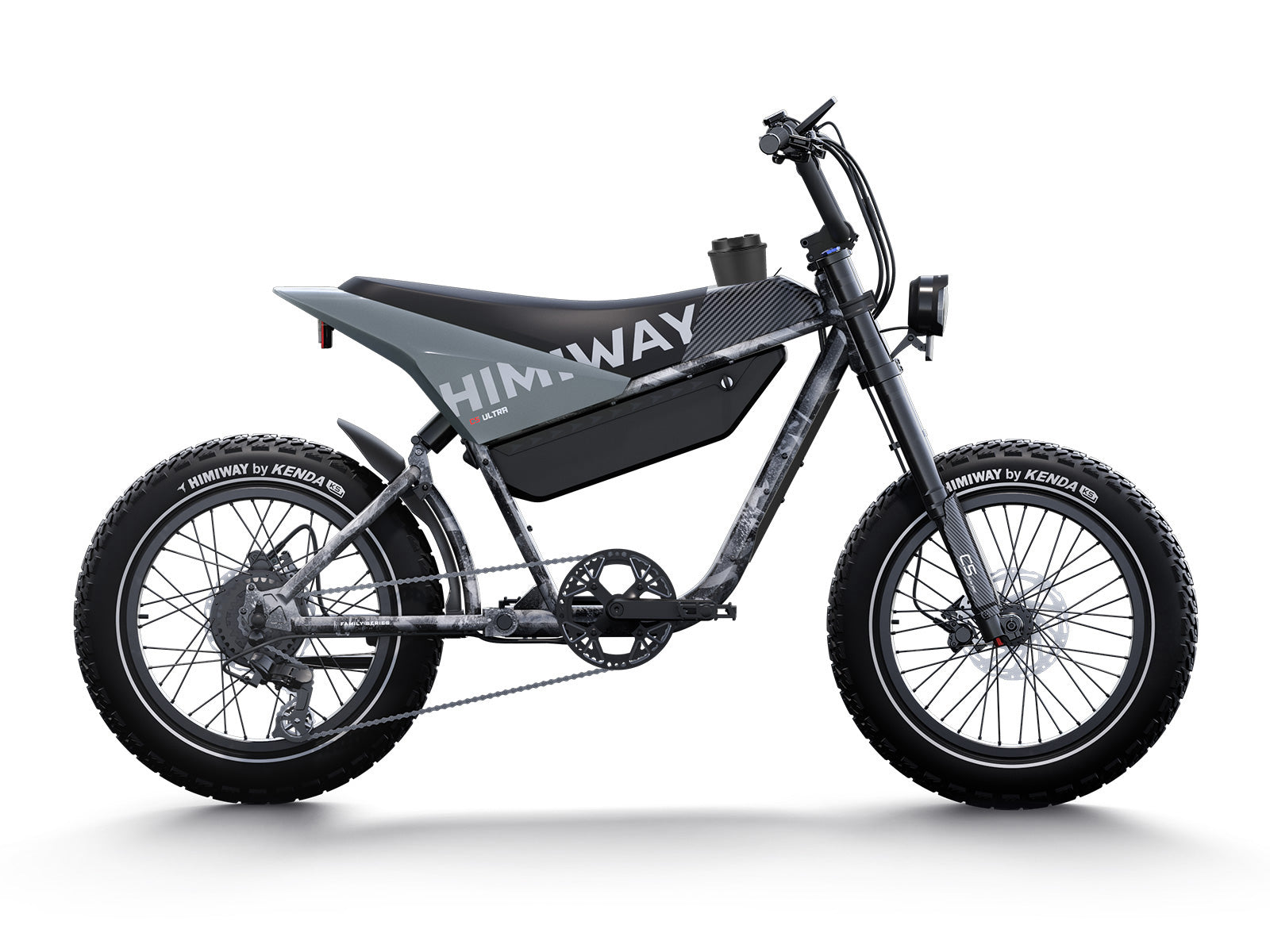

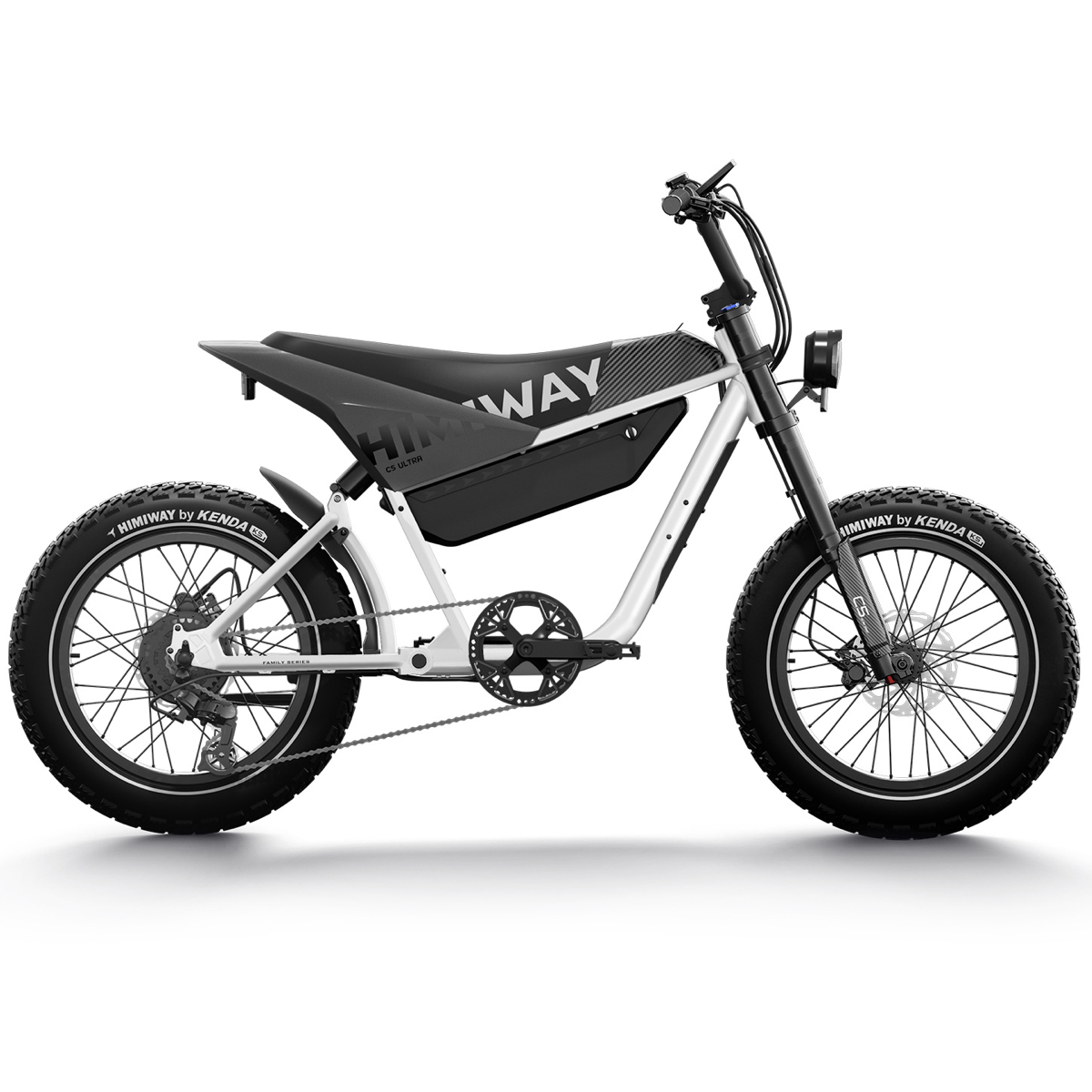

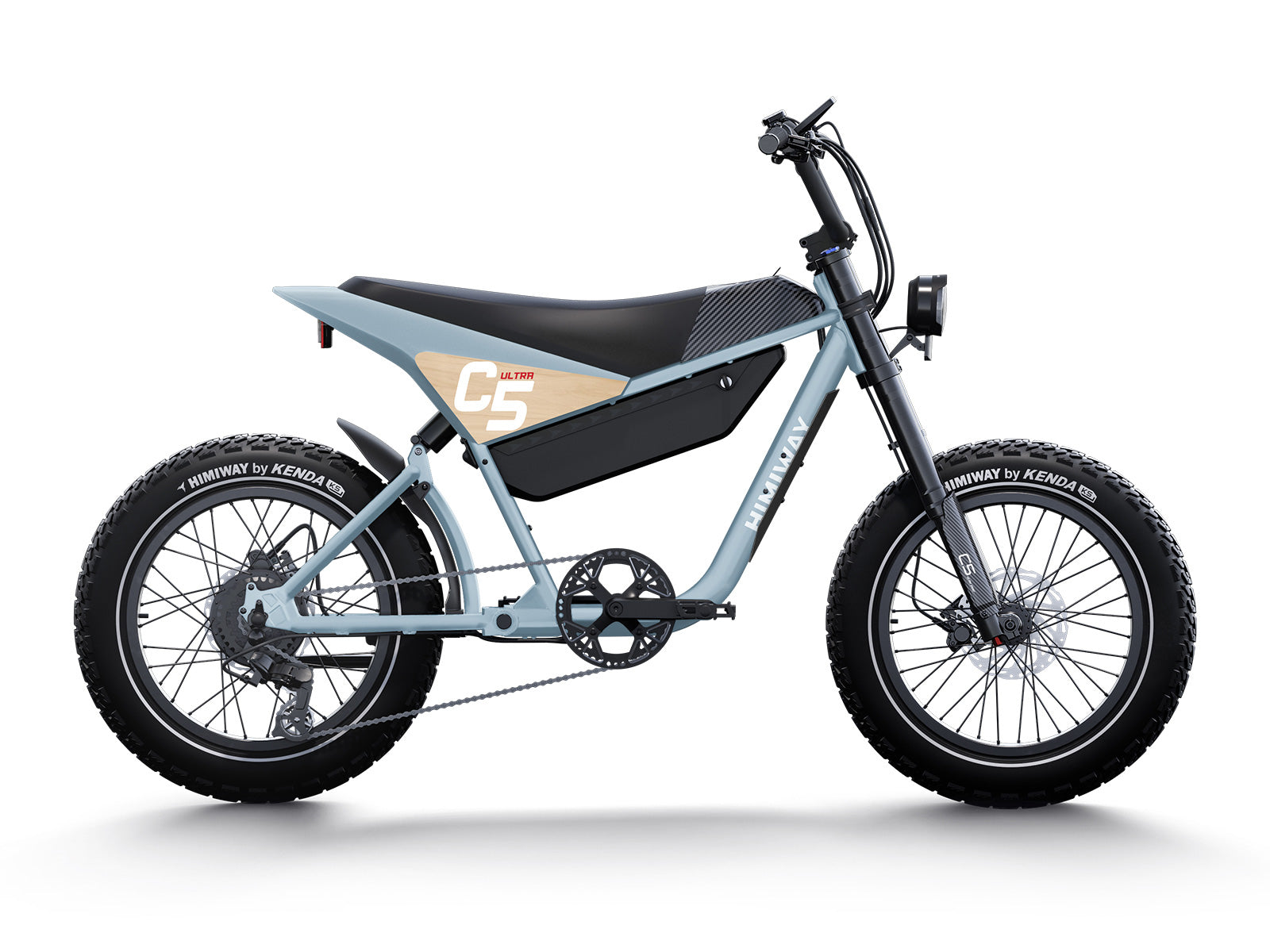

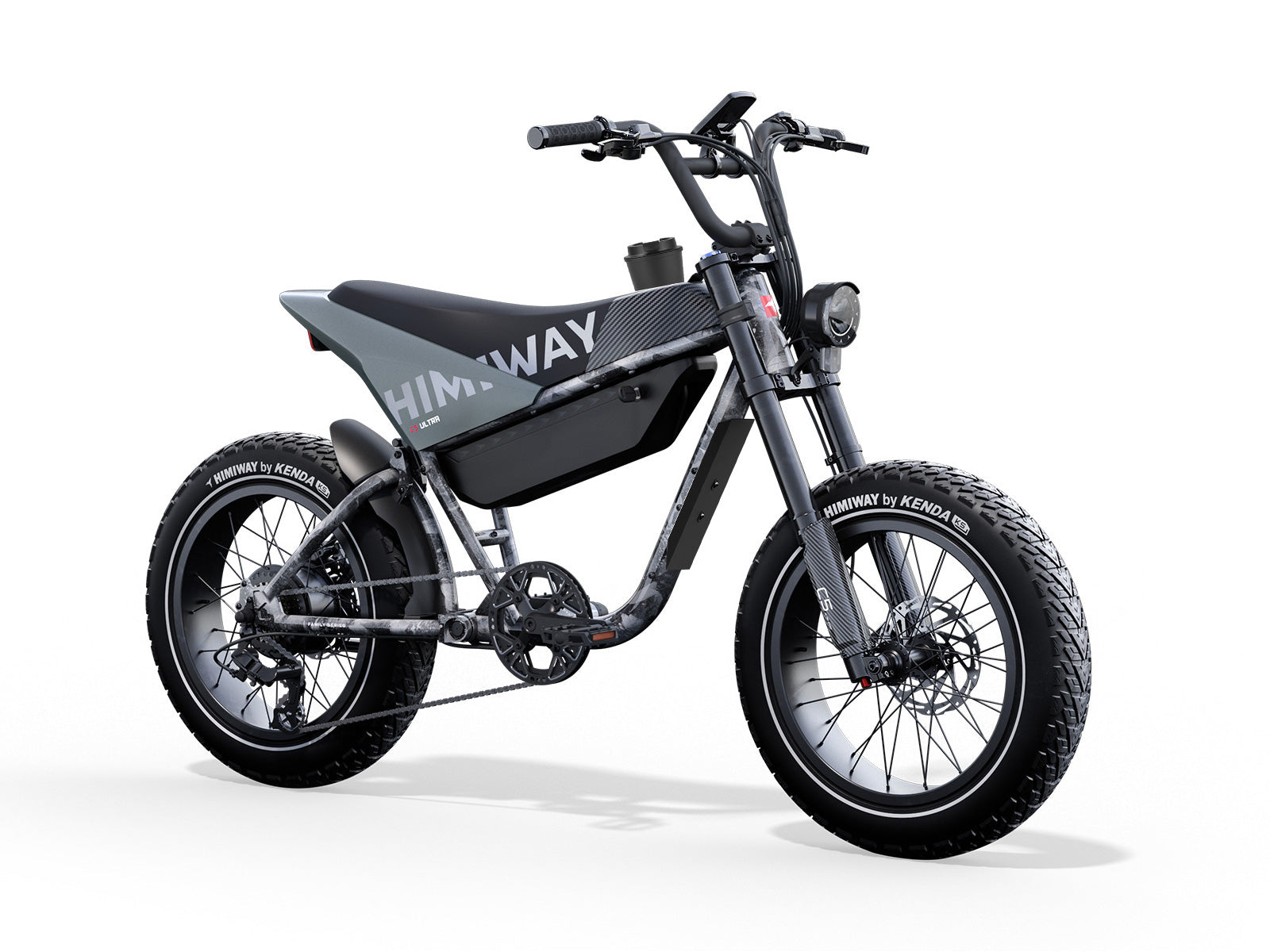

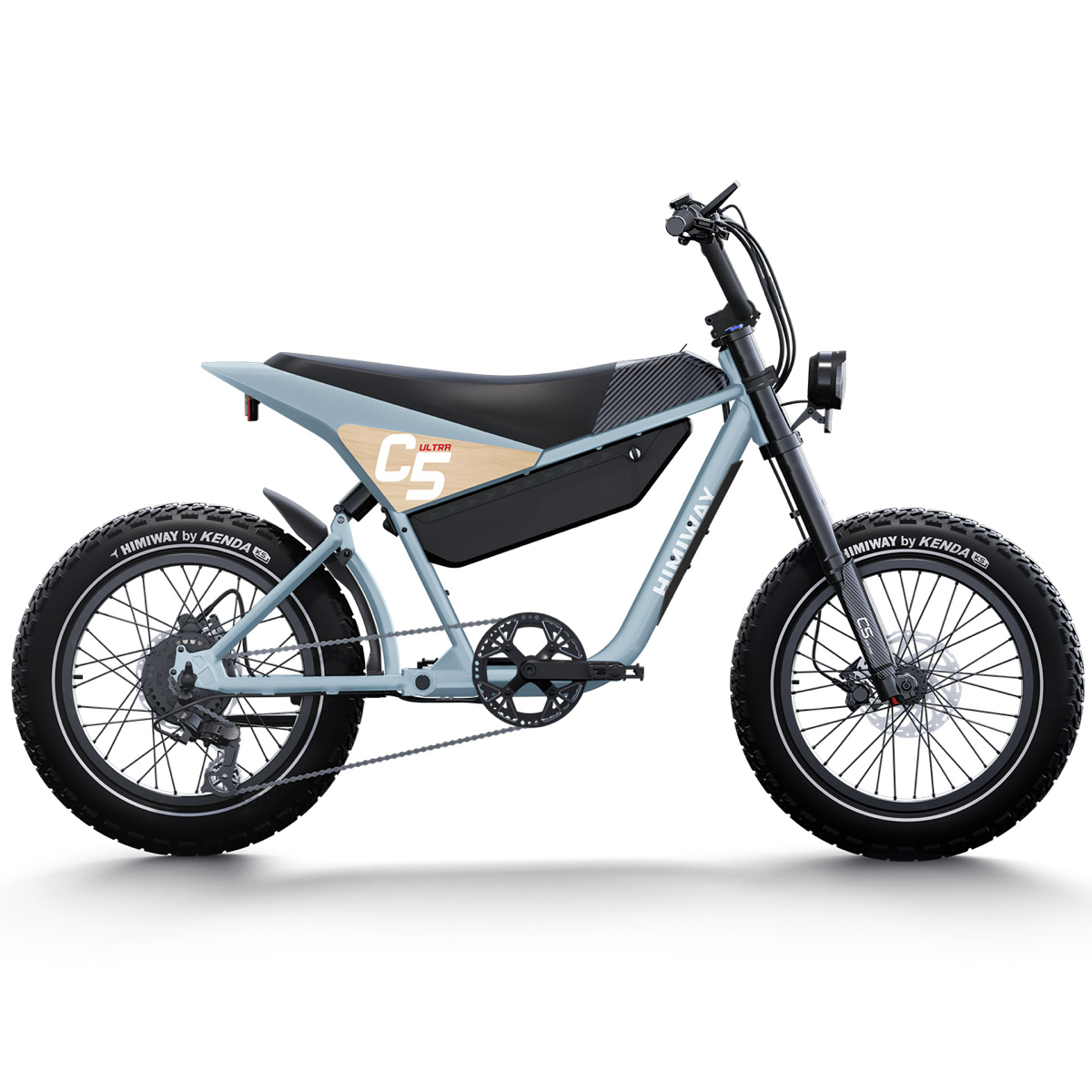

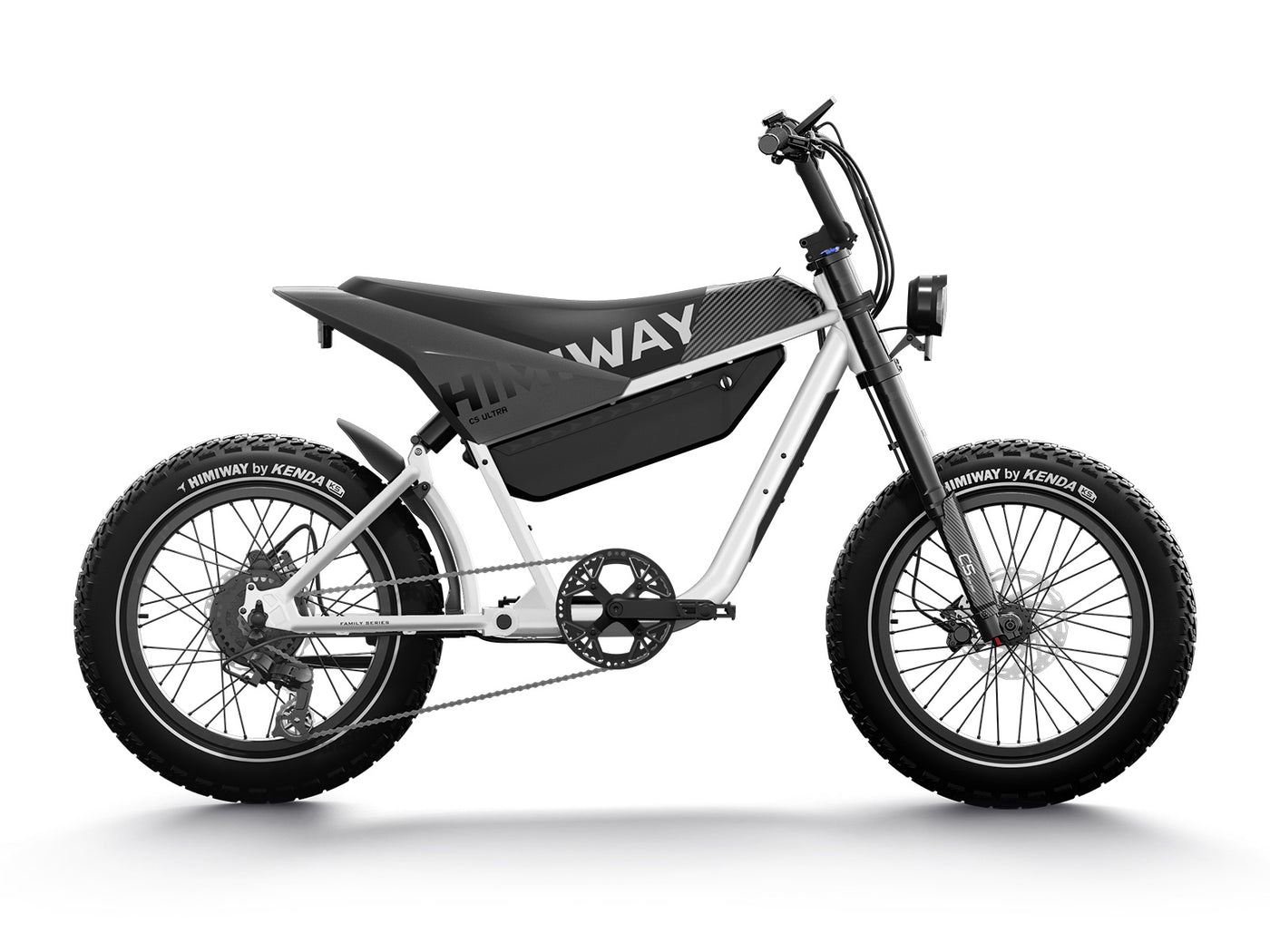

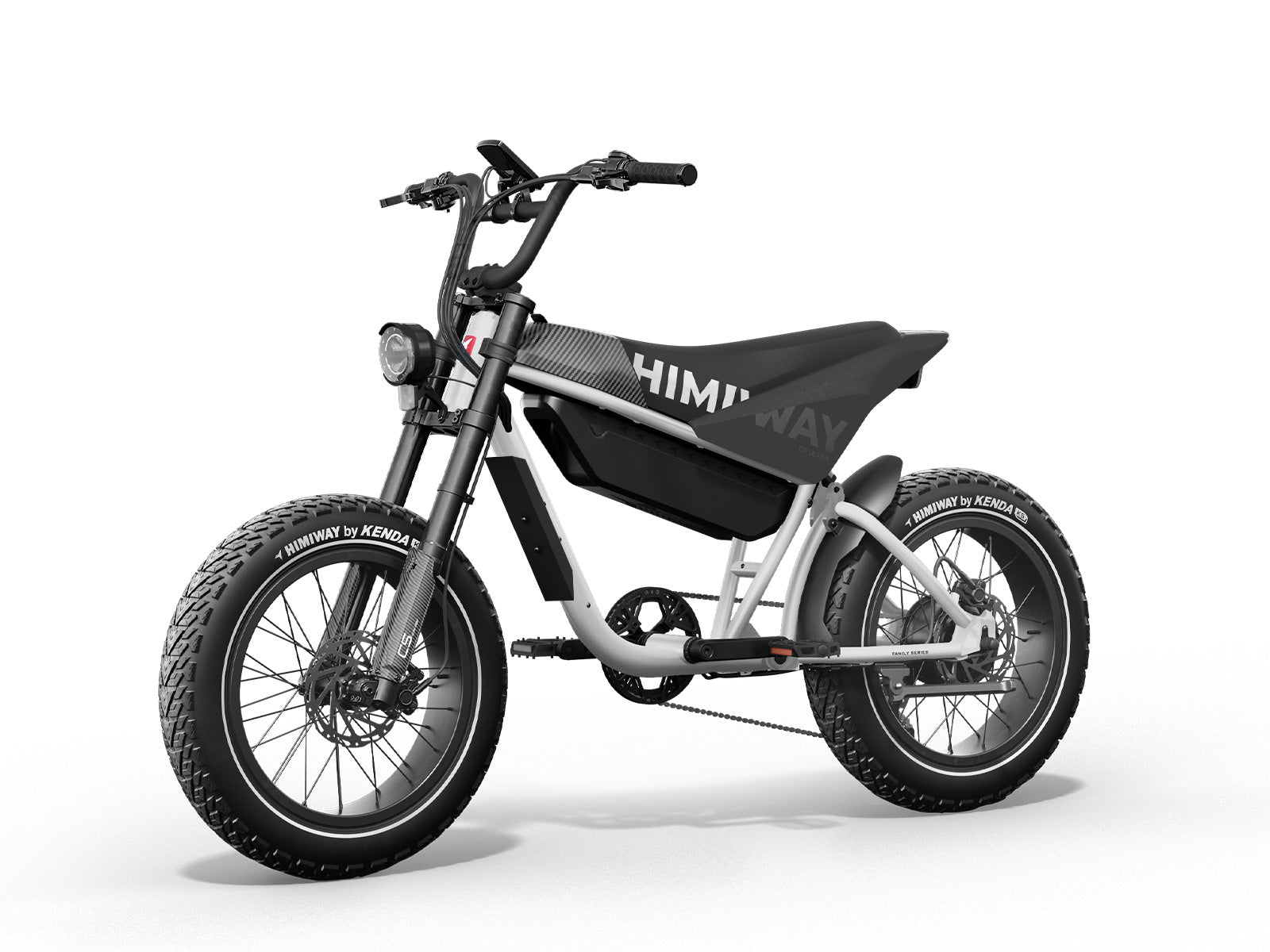

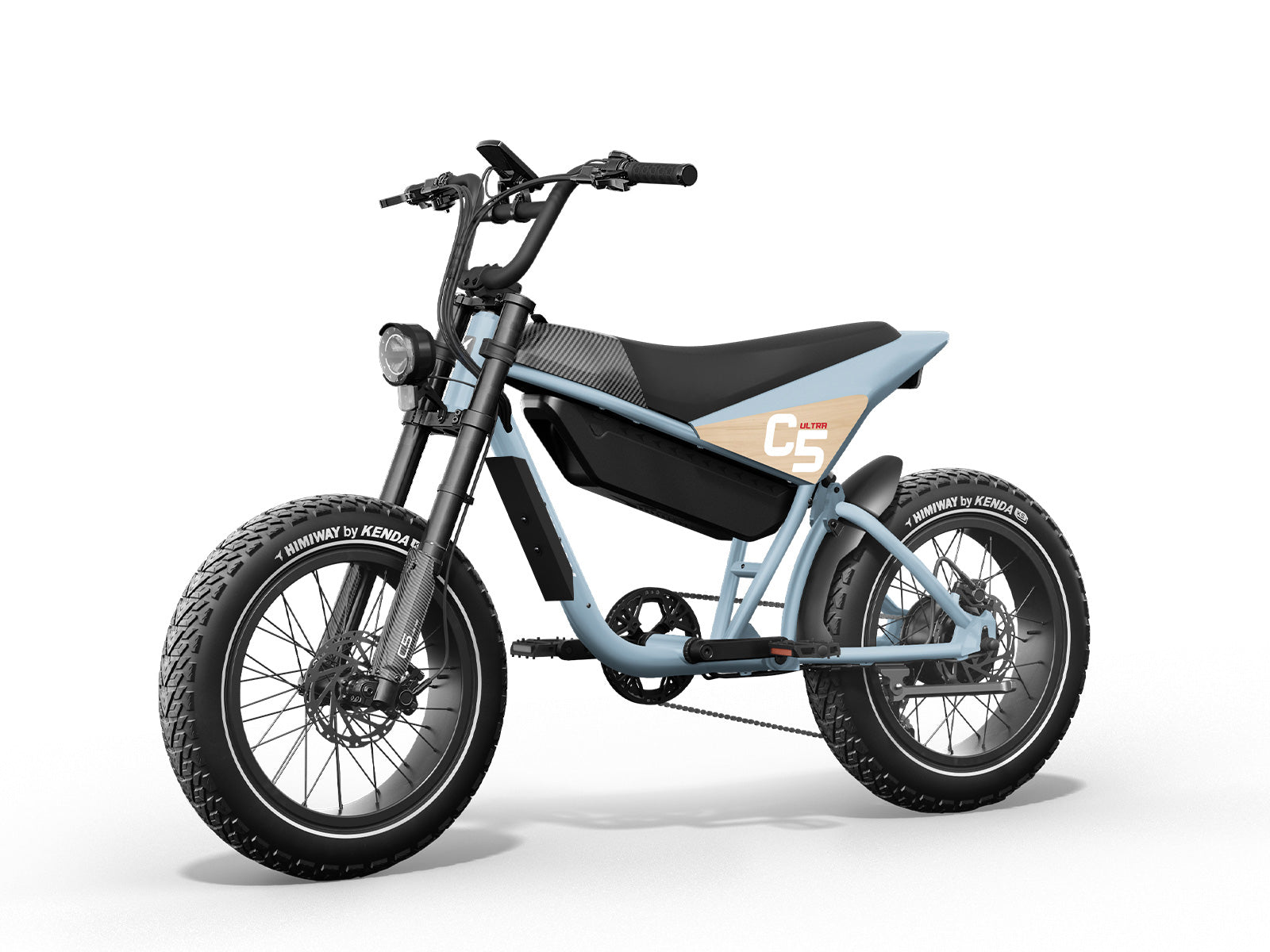

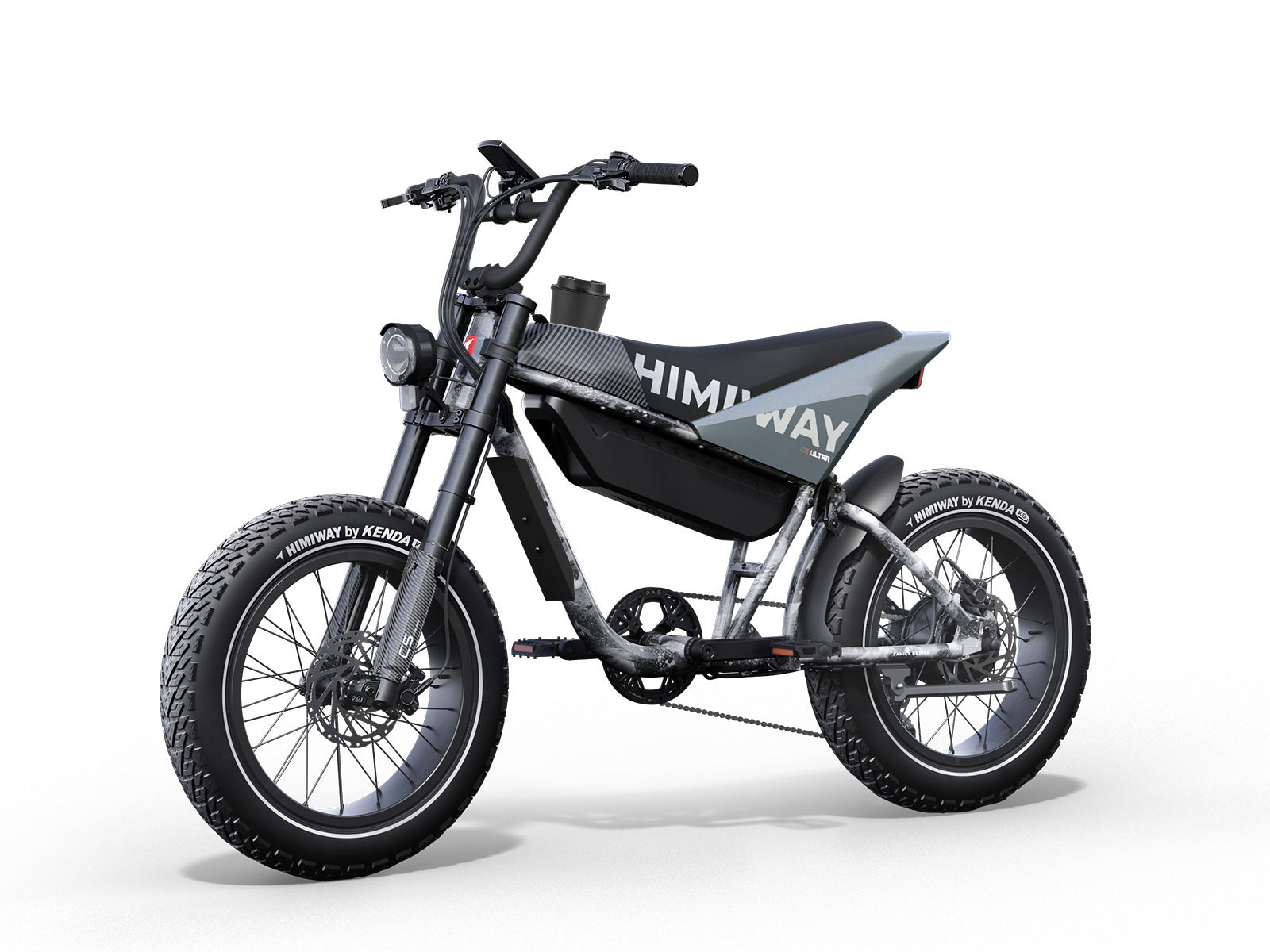

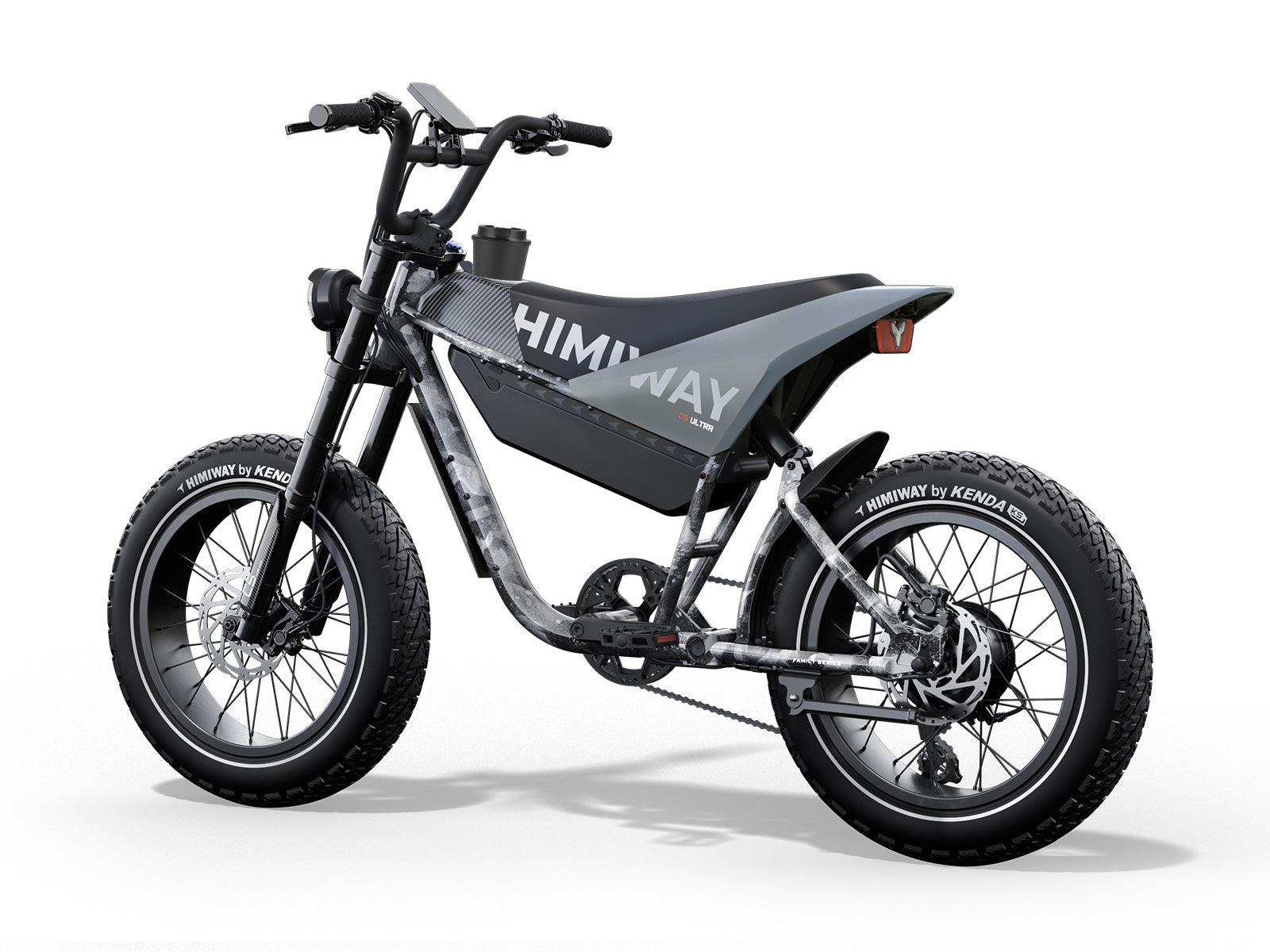

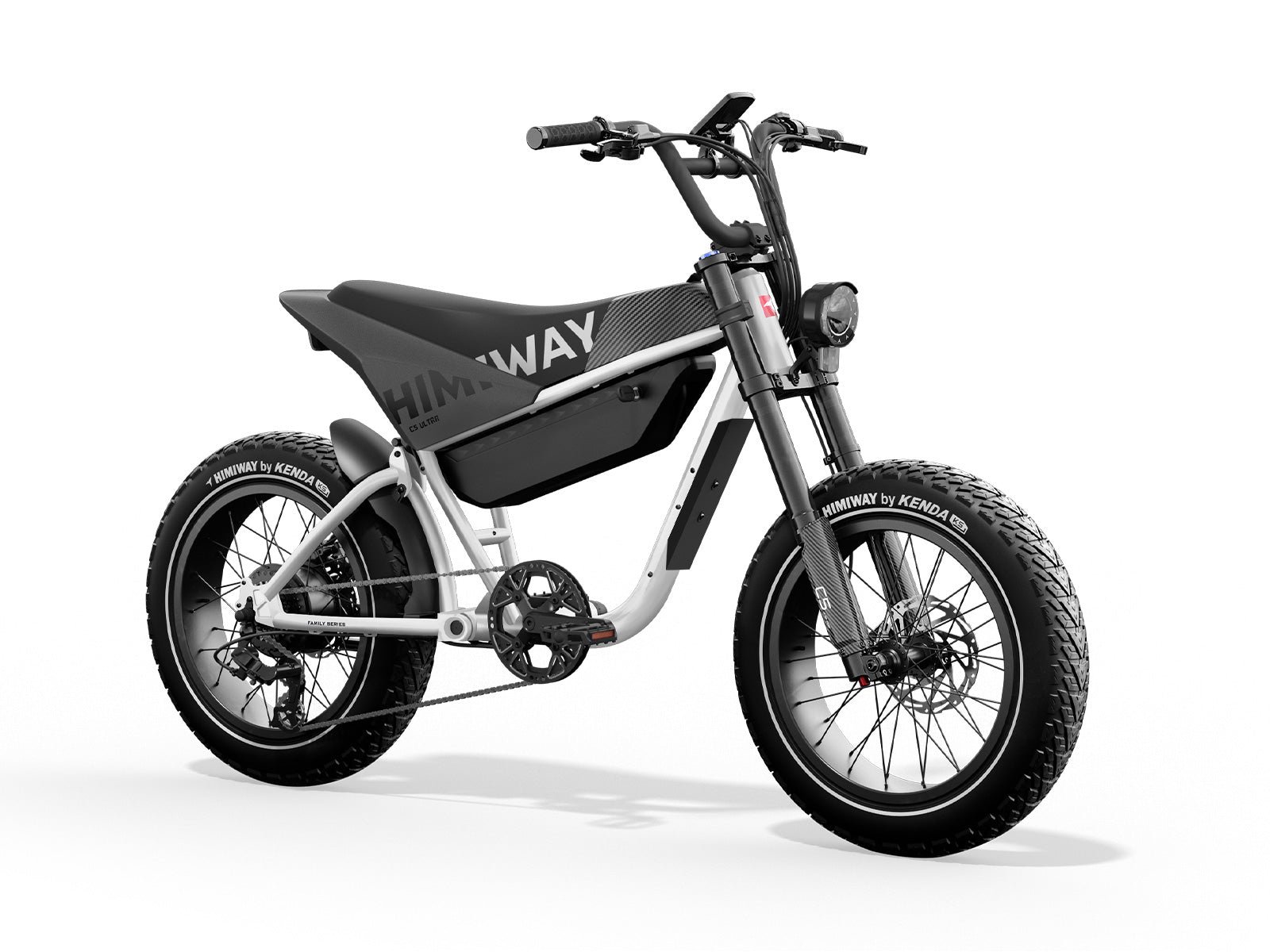

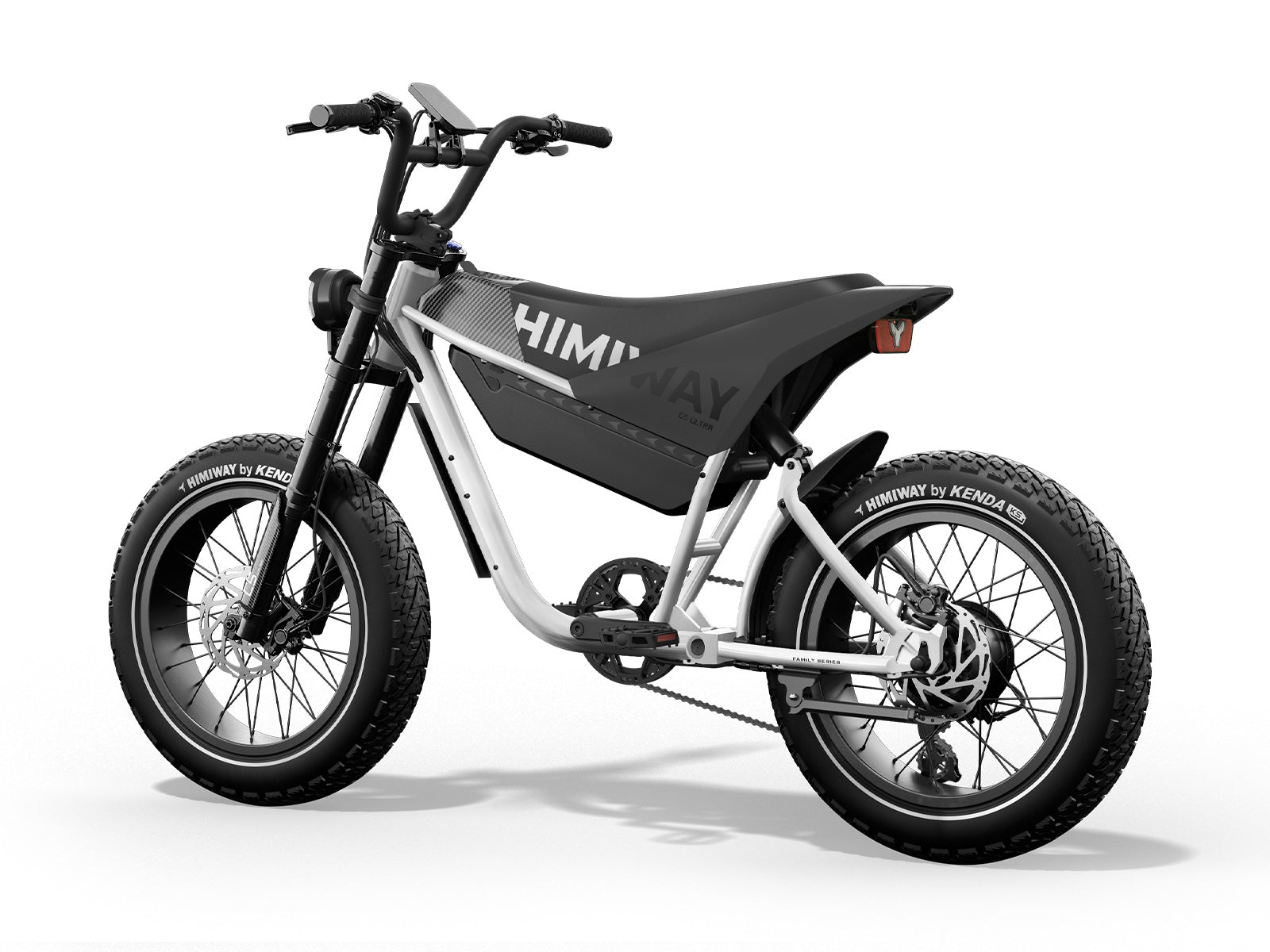

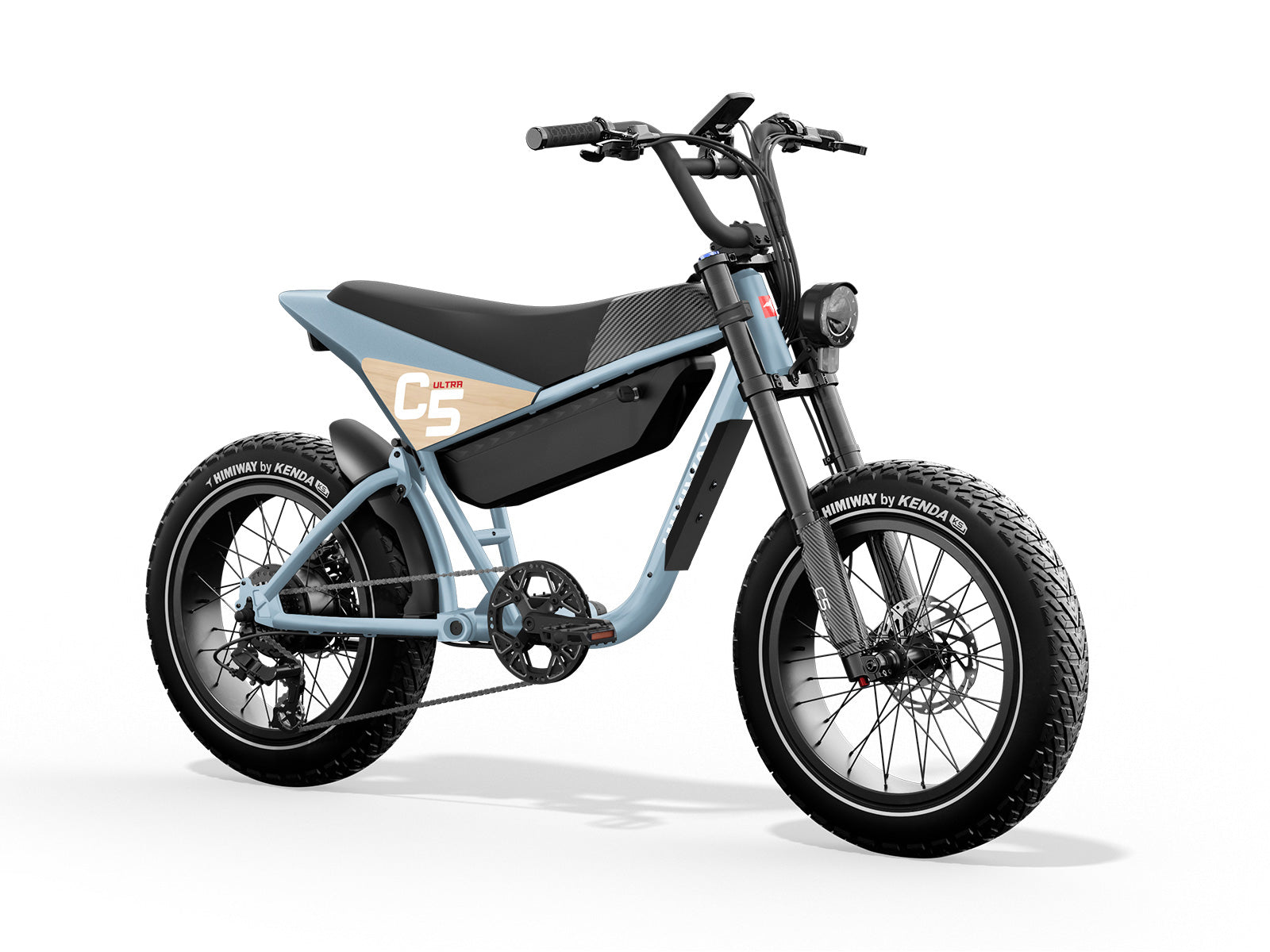

Himiway C5 Ultra electric bike
Himiway C5 UltraElectric Motorbike
Turn every ride into an adventure with the Himiway C5—blending motorcycle style with e-bike efficiency. Powered by a 250W, 86Nm motor and a long-range 48V 20Ah battery, it delivers up to 80 miles of exhilarating performance on a single charge.
The robust 6061 aluminium frame, full suspension, and fat 20″ × 4.0″ Kenda tyres ensure smooth handling on any terrain—from city streets to sandy trails. Hydraulic disc brakes, integrated lighting, and torque-sensing pedal assist provide confident control and safety.
Comfort is built in with an extended saddle and thoughtful touches like a cup holder. With a payload of up to 150 kg and minimal assembly required, the C5 is ready for your next urban commute or weekend escape.
Key Specs:
-
750W motor, 86Nm torque
-
48V 20Ah battery, up to 80mi range
-
Full suspension, hydraulic disc brakes
-
20″ × 4.0″ Kenda fat tyres
-
Payload: 150 kg
-
Frame: 6061 Aluminum
-
Headset: Neco H114 28.6*44*30
-
Fork: KKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle
-
Shock: EXA A5-RE 180*47mm
-
Front wheel: Rim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB016F-92-T 15*135MM 12G*36H
-
Rear wheel: Rim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 126mm/127mm Hub: 48v 250w Himiway Hub Motor
-
Tyres: Kenda X Himiway 20*4.0
-
Battery: LG 48V 20Ah
-
Motor: 250W brushless gear motor
-
Display: Himiway C2 LCD Display
-
Sensors: Torque sensor丨speed sensor丨brake sensor
-
Crankset: 44T BCD104 6061-T6 145mm
-
Freewheel: Shimano MF-TZ500-7 14-28T
-
Chain: KMC Z8.3 EPT 130L
-
Groupset: Shimano altus M310 7 speed
-
Front brake: Tektro hydraulic brake
-
Rear brake: Tektro hydraulic brake
-
Rotors: Tektro TR180-52 F:180mm R:180mm
-
Stem: 3D forged alloy Ext:40mm
- Handlebar: YC-B086 22.2*31.8*720mm
-
Lights: 48V LED light
-
Kickstand: Heavy-duty aluminum kickstand
-
Range: 60-80 miles (96-128 KM)
-
Controller: 48V/22A
-
Charger: 3.0 A smart charger
-
Rider height: 5’4"~6'3" (162~190cm)
-
Weight: 88 lb.
-
Max. system weight: 330 lb.
-
A – total length: 70.8‘’ (179.8cm)
-
B – handlebar height: 48.8‘’ (123.9cm)
-
C – handlebar length: 29.1‘’ (73.9cm)
-
D – wheelbase: 47‘’ (119.3cm)
-
E – wheel diameter: 23.3‘’ (59.1cm)
-
F – minimum seat height: 31.8‘’ (80.7cm)
-
G – maximum seat height: 33‘’ (83.8cm)
-
H – chain stay length: 22.5‘’ (57.1cm)
-
I – frame stack: 31.9‘’ (81cm)
-
K – effective top tube length: 29.4‘’ (74.6cm)
-
L – head tube length: 6.7‘’ (17cm)
-
M – head angle: 66.8°
-
N – standover height: 31.8‘’ (80.7cm)
If you prefer to have your bike shipped assembled and PDI checked then we have partnered with a specalist courier who can ship your bike from our workshop to your door. The bike will be assembles, PDI checked, charged and ready to ride!
Select when adding bike to basket.
Suspension
Shimano drive chain
LCD display
Motor
All terrain tyres
